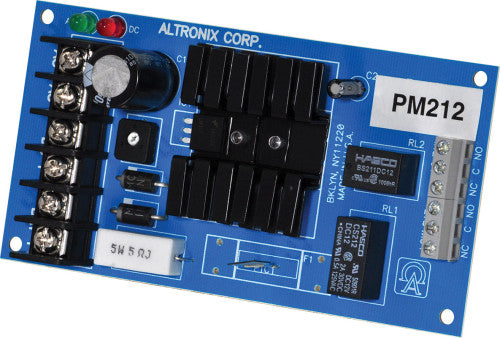

Altronix PM212 12VDC/1A SUPERVISED PS/CHGR

Altronix PM212 12VDC/1A SUPERVISED PS/CHGR Altronix PM212 supervised linear power supply/charger converts a low voltage AC input to a filtered and regulated continuous power-limited output. Input Transformer requirements: - 16VAC/20VA for 12VDC output (Altronix Model # TP1620). Output 12VDC output. 1A continuous supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails (zero voltage drop). PTC battery protection. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Electrical Temperature: Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 6 BTU/Hr.
