Description

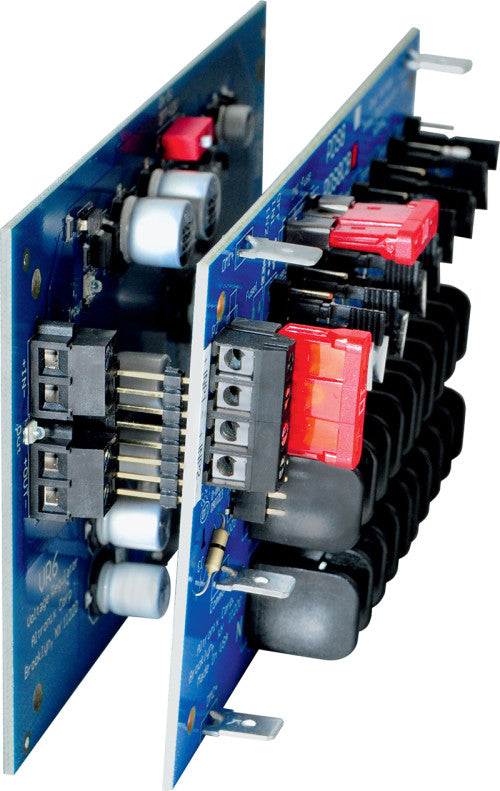

Altronix PDS8CBK1 VR6/PDS8CB KIT
Altronix VR6 Voltage Regulator converts a 24VDC input into a regulated 5VDC or 12VDC selectable output at up to 6A supply curent. It reduces the cost of adding an additonal power supply to achieve 24VDC and 12VDC or 5VDC simultaneously. / Altronix PDS8CB dual input power distribution module is designed to steer the power from either two (2) low voltage AC or DC power sources. This power is distributed over a total of eight (8) PTC protected outputs.
VR6
Power Input / Output:
Input: 24VDC @ 1.75A – Output: 5VDC @ 6A.
Input: 24VDC @ 3.5A – Output: 12VDC @ 6A.
Output:
5VDC or 12VDC regulated output.
Output rating 6A max. non power-limited.
Surge suppression.
LED Indicators:
Input and output LEDs.
BTU/Hr (approx.):
5VDC: 15 BTU/Hr.
12VDC: 37 BTU/Hr.
PDS8CB
Power Input 1 and Input 2 Voltage Range:
5VDC to 24VDC up to 9A each or 16VAC to 28VAC up to 9A each.
Outputs:
Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2.
Individual outputs may be set to OFF position for servicing.
PTC protected outputs rated @ 2A. (total output current should not exceed max current rating of power supply employed).
Surge suppression.
LED Indicators:
Individual voltage LED indicates 12VDC (Green) or 24VDC (Red/Green).
Temperature
VR6, PDS8CB
Operating Temperature 0ºC to 49ºC (32ºF to 120ºF).
Storage Temperature - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity 85% +/- 5%.
