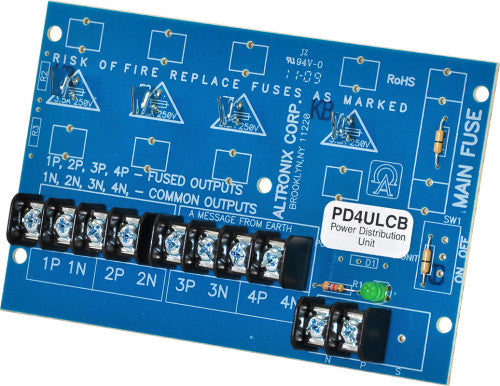

Altronix PD4ULCB UL Listed Sub-Assembly power distribution module is designed to convert a single AC or DC input into four (4) PTC protected Class 2 Rated powerlimited outputs.

Input
12VDC or 24VDC up to 10A (total output current should not exceed max current rating of power supply employed).

Output
Four (4) PTC protected Class 2 Rated power limited outputs.
PTCs rated @ 2A/250V.
Surge suppression.

Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.

Features
Power LED indicator.
