Altronix PD4UL UL POWER DISTRIBUTION UNIT

Altronix PD4UL UL POWER DISTRIBUTION UNIT

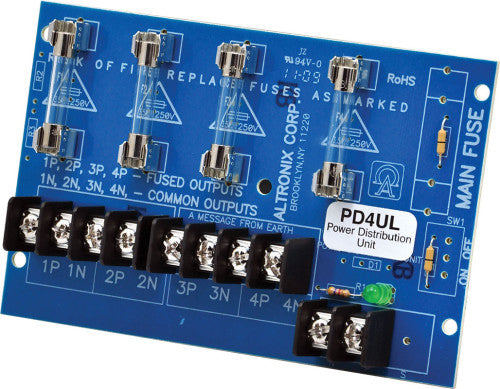

Altronix PD4UL UL Listed Sub-Assembly power distribution module is designed to convert a single AC or DC input into four (4) individually fuse protected outputs.

Input
12VDC or 24VDC up to 10A (total output current should not exceed max current rating of power supply employed).

Output
Four (4) fuse protected outputs.
Fuses rated @ 3.5A/250V.
Surge suppression.

Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.

Features
Power LED indicator.
