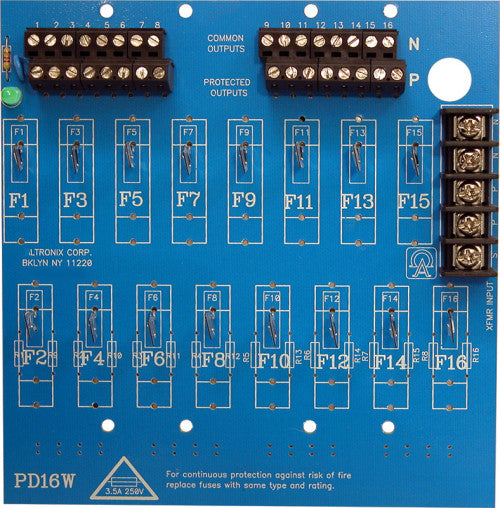

Altronix PD16WCB UL Listed Sub-Assembly power distribution module is designed to convert a single AC or DC input into sixteen (16) PTC protected Class 2 Rated power-limited outputs.

Input
12VDC or 24VDC up to 10A or
24VAC or 28VAC, up to 12A.

Output
Sixteen (16) PTC protected Class 2 Rated power-limited outputs (auto-resettable).
2A per output max.
Total output current should not exceed max current rating of power supply employed.
PTCs are rated @ 2A/250V.

Features
Power LED indicator.

Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
