Description

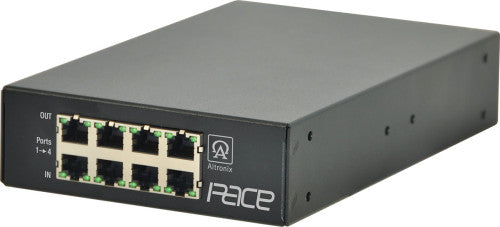

Altronix PACE4PRM 4CH IP EXTENDER RCVR 100MBPS
Pace4PRM are long range Ethernet receivers that transmit data at 100Mbps full duplex and power via CAT5e or higher cable in a PoE(+) compliant format. The Pace4PRM receivers are powered via a PoE midspan such as the Altronix Netway series or by an endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1PTM transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at the distances greater than 100m. They also provide a simple way to replace legacy analog products with new IP devices over structured cable.
Input
Powered by midspan or endspan. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).
Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e.
Distance: up to 500m.
Speed: 100BaseT, full duplex, auto negotiation. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by Pace1PTM. Power provided by Pace4PRM to Pace1PTM by PoE protocol.
CAT5e or Higher
Throughput is rated to pass 100Mbps of data at distances up to 500m. With proper headend equipment this supports Megapixel, HD720, HD1080.
Distance: up to 500m @ 100Mbps.
LED Indicators
Yellow and Green LED (by RJ45 jack):
IP Link status, 10/100Base-T/active.
Temperature
Operating Temperature: -20ºC to 49ºC (-4ºF to 120.2ºF).
Storage Temperature: -30ºC to 70ºC (-22ºF to 158ºF).
Relative Humidity 85% +/- 5%.
Operating Altitude
- 304.8 to 2,000m.
