Altronix PACE4KR 4PT 1KM SPE POE ADP/SW 2UPLINK

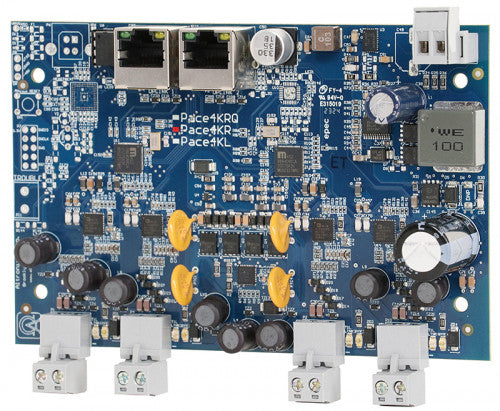

Altronix PACE4KR 4PT 1KM SPE POE ADP/SW 2UPLINK Altronix Pace4KR is a 4-port SPE (Single Pair Ethernet) Media Adapter/Switch that transmits data and power via twisted pair (2-wire, UTP or shielded) in a PoE(+) compliant format. In addition to new SPE (UTP) Ethernet network installations for Surveillance-cameras/Security/ Industrial/BMS/HVAC/Elevator Controllers, applications include upgrading of legacy networks, i.e. LONworks, RS485, 4-20ma Control Loops, etc. by using the existing two wire cabling, thus saving rip-out & reinstallation costs. Operationally, the Pace4KR is connected to a PoE midspan/endspan switch at the headend and passes network data and power to the remote PaceKT Series transceiver(s) over UTP up to 1km (1,000m, 3,280 ft.). Pace1KT & Pace2KT transceivers can connect to one or two remote devices, such a as a camera(s) or controllers, respectively. For non-enable PoE devices, only data will be transmitted. Cable distances and multi-node device drop-offs are facilitated by using one of the two Pace2KT ports for the continued network link in a daisy chain manner. For a direct T1L remote device, use Pace1K12/24S adapter to split T1L data & power for a compatible device. Input 12/24V power supply. 24VDC: supports 100W Total POE output power. 12VDC: supports 60W Total POE output power. (For 24V/12VDC Power Supply add a minimum of 15% margin to input power). UTP Connection Wire type: Twisted pair (2-wire, UTP or shielded) Distance: 1km (1,000m, 3,280 ft.), 16/2 AWG or higher @ 10Mbps Ethernet Connectivity: RJ45, auto-crossover. Wire type: 4-pair CAT5e or higher. Distance: up to 100m from midspan. Speed: 10/100BaseT, half/full duplex, auto negotiation. PoE: IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (25W) delivered to device by Pace4KR. Power provided by Pace4KR to Pace transceiver by PoE protocol. LED Indicators Yellow and Green LED (by RJ45 jack): IP Link status, 10/100Base-T/active. Link LED for each UTP port. Electrical Temperature: Operating: – 40º C to 75º C (– 40º F to 167º F). Storage: – 40º C to 75º C (– 40º F to 167º F). Relative Humidity: 85% +/- 5%. Operating Altitude: – 304.8 to 2,000m.
