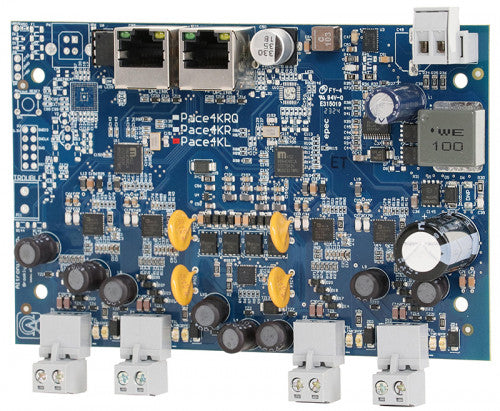

Altronix PACE4KL 4PT 1KM T1L SPE ADP/SW 2UPLINK

Altronix PACE4KL 4PT 1KM T1L SPE ADP/SW 2UPLINK Altronix Pace4KL is a SPE (Single Pair Ethernet) 4-port T1L Media Adapter/Switch that enables connecting up to four (4) 10Base-T1L, IEE802.3cg compliant devices such as Security/Industrial/BMS/Elevators/HVAC Controllers and sensors, etc. to an Ethernet network. Long distance headend switch to remote-end device cabling can be achieved to over 1km (1,000m, 3,280 ft.). Pace4KL can be used in a typical star configuration. Up to four (4) Pace4KL can be daisy-chained to further expand the network. In addition to new SPE (UTP) Ethernet network installations, upgrading of legacy networks, i.e. LONworks, RS485, 4-20mA Control Loops, etc. can be achieved by using the existing two wire cabling, thus saving rip-out & reinstallation costs. Operationally, Pace4KL is connected to a switch at the headend and is powered by the 12/24VDC power supply. Pace4KL passes network data from the switch via UTP up to 1km (1,000m, 3,280 ft.) to the remote T1L devices. Input 12/24V power supply, 3.5W. SPE (Single Pair Ethernet) over UTP or 16/2 AWG or Higher link Four (4) 10Base-T1L ports. Wire type: Twisted pair (2-wire, UTP, 16/2 AWG or higher). Speed: 10Mbps Distance: 1km (1,000m, 3,280 ft.). Ethernet Connectivity: RJ45, auto-crossover. Wire type: 4-pair CAT5e or higher. Distance: up to 100m from midspan. Speed: 10/100BaseT, half/full duplex, auto negotiation. LED Indicators Yellow and Green LED (by RJ45 jack): IP Link status, 10/100Base-T/active. Link LED for each T1L port. Electrical Temperature: Operating: – 40º C to 75º C (– 40º F to 167º F). Storage: – 40º C to 75º C (– 40º F to 167º F). Relative Humidity: 85% +/- 5%. Operating Altitude: – 304.8 to 2,000m.
