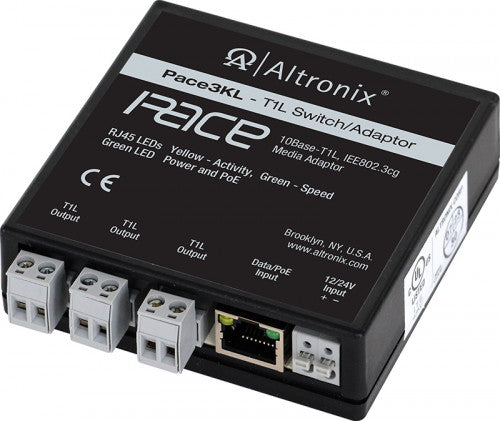

Altronix PACE3KL 3PT T1L ADAPTOR/SWITCH

Altronix PACE3KL 3PT T1L ADAPTOR/SWITCH Altronix Pace3KL is a SPE (Single Pair Ethernet) 3-port T1L Media Adaptor/Switch that enables connecting up to three (3) 10Base-T1L, IEE802.3cg compliant devices such as Security/Industrial/BMS/Elevators/HVAC Controllers and sensors, etc. to an Ethernet network. Long distance headend switch to remote-end device cabling can be achieved to over 1km (1,000m, 3,280 ft.). The Pace3KL can be used in a typical star configuration or as a multipoint drop off node configuration. In addition to new SPE (UTP) Ethernet network installations, upgrading of legacy networks, i.e. LONworks, RS485, 4-20mA Control Loops, etc. can be achieved by using the existing two wire cabling, thus saving rip-out & reinstallation costs. Operationally, the Pace3KL is connected to a PoE midspan/endspan switch at the headend and can be powered by the PoE port or 12/24VDC power supply. Pace3KL passes network data and power from the switch via UTP up to 1km (1,000m, 3,280 ft.) to the remote T1L devices. Input Can be powered either by - PoE midspan or endspan or - 12/24VDC power supply If both power sources are used, external 12/24VDC power supply will be preferences to optimize power usage SPE (Single Pair Ethernet) over UTP or 16/2 AWG or Higher link Three (3) 10Base-T1L ports Wire type: Twisted pair (2-wire, UTP) Distance: 1km (1,000m, 3,280 ft.) @ 10Mbps Ethernet Connectivity: RJ45, auto-crossover. Wire type: 4-pair CAT5e or higher. Distance: up to 100m from midspan. Speed: 10/100BaseT, half/full duplex, auto negotiation. LED Indicators Yellow and Green LED (by RJ45 jack): IP Link status, 10/100Base-T/active Electrical Temperature: Operating: – 40º C to 75º C (– 40º F to 167º F). Storage: – 40º C to 75º C (– 40º F to 167º F). Relative Humidity: 85% +/- 5%. Operating Altitude: – 304.8 to 2,000m.
