Description

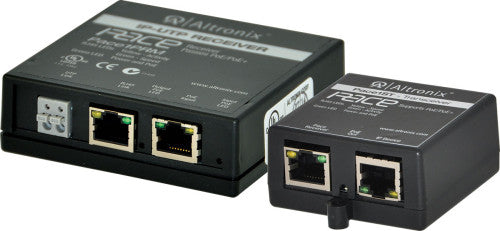

Altronix PACE1STR IP&POE+/CAT5E/REC&MINI TRANS
Pace1STR is a long range Ethernet adapter kit which transmits data at 100Mbps full duplex and power via Cat5e or higher cable in a PoE(+) compliant format. The Pace1PRM receiver is powered via a PoE midspan such as the Altronix Netway series or by an endspan. The receiver passes the PoE(+) compliant power over the cable to the Pace1ST mini transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m.
Input
Pace1PRM:
Powered by midspan or endspan. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W).
Pace1ST:
Powered by Pace1PRM.
Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e or higher.
Distance: up to 500m.
Speed: 10/100BaseT, half/full duplex, auto negotiation. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by Pace1ST. Power provided by Pace1PRM to Pace1ST by PoE protocol.
Throughput is rated to pass 100Mbps of data at distances up to 500m. With proper headend equipment this supports Megapixel, HD720, HD1080.
CAT5e or Higher
Distance: up to 500m. @ 100Mbps.
LED Indicators
Pace1PRM/Pace1ST: Green - PoE ON (by respective RJ45 jack).
Pace1PRM and Pace1ST (RJ45 jack): Yellow and Green LED IP Link status, 10/100Base-T/active.
Functions
Auto detection and protection of legacy non-PoE cameras/devices.
Temperature
Operating Temperature:
Pace1PRM:
- 20° C to +49° C ( - 4° F to 120.2° F).
Pace1ST:
For 15W: - 40° C to 75° C ( - 40° F to 167° F).
For 30W: - 40° C to 65° C ( - 40° F to 149° F).
Storage Temperature: - 40° to 75° C ( - 40° to 167° F).
Relative humidity: 85% +/-5%.
Operating Altitude
-304.8 to 2000m.
