Description

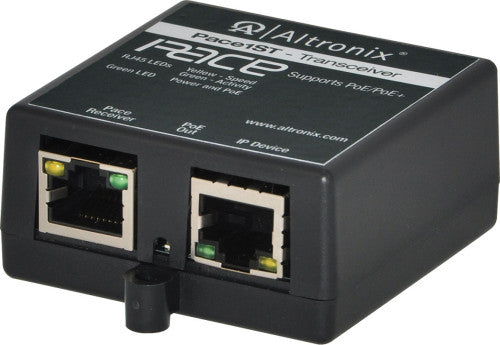

Altronix PACE1ST IP&POE+/CAT5E/MINI TRANS
Pace1ST is a long range Ethernet transceiver designed for use with Pace1PRM, Pace4PRM, Pace8PRM and Pace16PRM receivers. They transmit data at 100Mbps full duplex and power via Cat5e or higher cable in a PoE(+) compliant format. The Pace1ST will not deliver power to non compliant devices, thus avoiding damage to improperly connected non-PoE cameras/devices. The receiver passes the PoE(+) compliant power over the cable to the Pace1ST transceiver which in turn passes this power to an enabled IP camera/device. These plug and play units facilitate cost effective solutions for IP devices that need to be installed at distances greater than 100m.
Input
PoE (15W) IEEE 802.3af compliant or PoE+ (30W) IEEE 802.3at compliant from Pace1PRM, Pace4PRM, Pace8PRM, or Pace16PRM.
Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e or a single twisted pair UTP.
Speed: 10/100BaseT, half/full duplex, auto negotiation. PoE compliant to IEEE 802.3af (15W) and PoE+ compliant to IEEE 802.3at (30W) delivered to camera by Pace1ST.
Throughput is rated to pass 100Mbps of data.
CAT5e or Higher
Distance: up to 500m @ 100Mbps.
LED Indicators
Green - PoE ON (by respective RJ45 jack).
Yellow and Green LED IP Link status, 10/100Base-T/active.
Temperature
Operating Temperature:
For 15W: - 40° C to 75° C ( - 40° F to 167° F).
For 30W: - 40° C to 65° C ( - 40° F to 149° F).
Storage Temperature: - 40° C to 75° C ( - 40° F to 167° F).
Relative humidity: 20 to 85%, non-condensing.
Operating Altitude
-304.8 to 2000m.
Functions
Auto detection and protection of legacy non-PoE cameras/devices.
