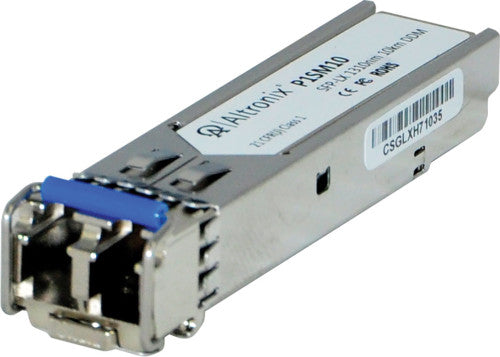

Altronix P1SM10 SINGLEMODE SFP 10KM 1.25GBPS

Altronix P1SM10 SINGLEMODE SFP 10KM 1.25GBPS

Altronix P1SM10 are hot-pluggable SFP fiber transceiver modules and are readily usable with all Altronix Spectrum fiber optic equipment for 1G transmission rates. The P1SM10 is to be used with Single-Mode Fiber for distances up to 20Km. It is recommended to pair (two per fiber link) remote and head-end with same SFP module.

Key Features
IEEE 802.3a compliant.
Spans distances up to 20km (12.43 miles)
Conforms to (SFP) Small Form-Factor Pluggable Multi-Source Agreement (MSA).

Standards
Class 1 FDA and IEC60825-1 Laser Safety Compliant.
Compliant with MSA SFP Specification.
Compliant with SFF-8472.

Connector Type
LC Duplex.

Data Rate
Up to 1.25Gbps.

Wave
1310nm FP Laser Transmitter.

TX power (dBm)
-22 ~ -3

RX Sensitivity (dBm)
-10 ~ -3

Distance
20km with 9/125 micron SMF.

Temperature
Operating Temperature: 0ºC to 70ºC (32ºF to 158ºF).
Storage Temperature: - 40ºC to 85ºC (-40º to 185ºF).
Relative Humidity 85% +/- 5%.
