Altronix P1AB2K P1A2K AND P1B2K BIDI SFP MOD

Altronix P1AB2K P1A2K AND P1B2K BIDI SFP MOD

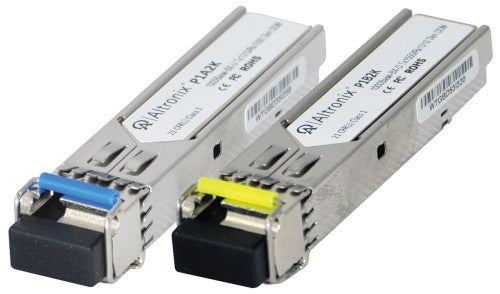

Altronix P1AB2K kit includes 1 P1A2K and 1 P1B2K hot-pluggable Bi-Directional single strand SFP fiber transceiver modules and is readily usable with all Altronix NetWay Spectrum fiber optic equipment for 1G transmission rates at distances up to 2km. For use in new or retrofit applications where single strand fiber exists.

Key Features
Spans distances up to 2km (6561 ft.)
Conforms to (SFP) Small Form-Factor Pluggable Multi-Source Agreement (MSA).

Standards
Class 1 FDA and IEC60825-1 Laser Safety Compliant.
Compliant with MSA SFP Specification.

Connector Type
Hot-Pluggable SFP Footprint Simplex LC Connector Interface.

Data Rate
Up to 1.25Gbps.

Wave
Bi-Directional (BIDI).

P1A2K
TX power (dBm):
1550nm

RX Sensitivity (dBm):
1310nm

P1B2K
TX power (dBm):
1310nm

RX Sensitivity (dBm):
1550nm

Distance
2km with 9/125 micron SMF.

Temperature
Operating Temperature: 0ºC to 70ºC (32ºF to 158ºF).
Storage Temperature: - 40ºC to 85ºC (-40º to 185ºF).
Relative Humidity 85% +/- 5%.
