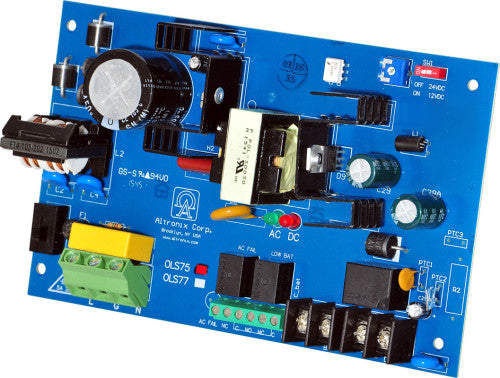

Altronix OLS75 12/24VDC 2.5AMP OLS BOARD

Altronix OLS75 12/24VDC 2.5AMP OLS BOARD Altronix OLS75 power supply/charger converts a 115VAC, 50/60Hz or 230VAC, 50/60Hz input into a 12VDC or 24VDC output @ 2.5A continuous supply current (see specifications). This unit has a wide range of applications for access control and security system accessories that require additional power. Input Universal input 115VAC, 50/60Hz, 0.95A or 230VAC, 50/60Hz, 0.6A. Output 12VDC or 24VDC selectable output. 2.5A continuous supply current. Filtered and electronically regulated output. Short circuit and thermal overload protection. Battery Charging Built-in charger for sealed lead acid or gel type batteries. Maximum charge current 0.5A. Automatic switch over to stand-by battery when AC fails. Battery leads included. (Batteries are sold separately). Supervision AC fail supervision (form "C" contacts). Low battery supervision (form "C" contacts). Visual Indicators AC input and DC output LED indicators. Features Power ON/OFF switch. Electrical Temperature: Operating: - 20° C to 49° C (-4 ° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 12VDC: 15 BTU/Hr. 24VDC: 31 BTU/Hr. System AC input VA requirement: 115VAC: 109.25VA. 230VAC: 138VA .
