Description

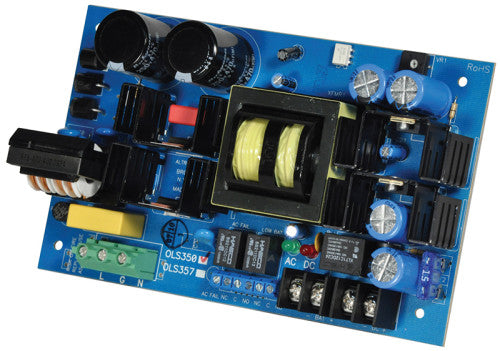

OLS350220 24VDC 12A SPVD P/S BD 220V
Altronix OLS350220 power supply/charger converts a 220VAC (working range
198VAC - 256VAC), 50/60Hz input into a 24VDC output. This unit has a wide range
of applications for access control and security system accessories that require
additional power.
Input
220VAC, 50/60Hz 2.5A.
Output
24VDC output.
12A continuous supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Maximum charge current 0.7A.
Automatic switch over to stand-by battery when AC fails.
Battery leads included.
(Batteries are sold separately).
Features
Power ON/OFF switch.
Supervision
AC fail supervision (form "C" contacts).
Low battery supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 147 BTU/Hr.
