Description

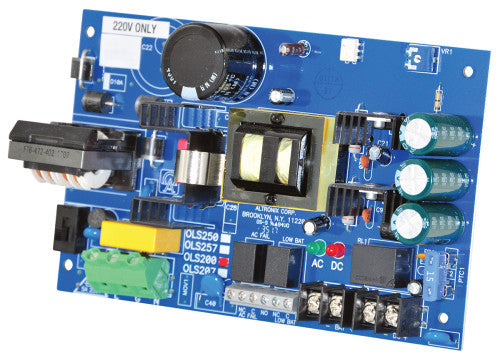

OLS200220 12 VDC 10 A OLS SUPPLY 220V IN
OLS200220 power supply/charger converts a 220VAC (working range 198VAC- 256VAC), 50/60Hz input into a 12VDC output @ 10A continuous supply current (see specifications). This unit has a wide range of applications for access control and security system accessories that require additional power.
Input
220VAC (working range 198VAC-256VAC), 50/60Hz, 0.95A.
Output
12VDC output.
10A continuous supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Maximum charge current 0.7A.
Automatic switch over to stand-by battery when AC fails.
Battery leads included.
(Batteries are sold separately).
Supervision
AC fail supervision (form "C" contacts).
Low battery supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Features
Power ON/OFF switch.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 61 BTU/Hr.
