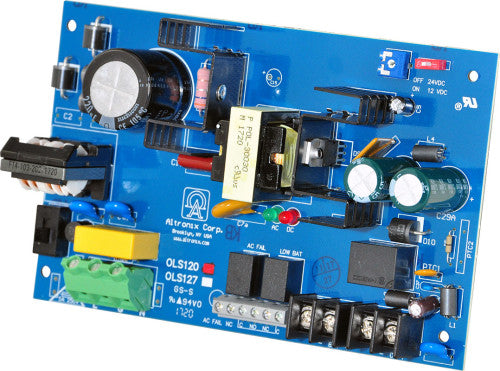

Altronix OLS120 12/24VDC 4 AMP OLS PS/CHGR BD
OLS120 power supply/charger converts a 115VAC, 50/60Hz or 230VAC, 50/60Hz input into a 12VDC or 24VDC output @ 4A continuous supply current (see specifications). This unit has a wide range of applications for access control and security system accessories that require additional power.
Input
Universal input 115VAC, 50/60Hz, 0.95A or 230VAC, 50/60Hz, 0.6A.
Output
12VDC or 24VDC selectable output.
4A continuous supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Maximum charge current 0.7A.
Automatic switch over to stand-by battery when AC fails.
Battery leads included.
(Batteries are sold separately).
Supervision
AC fail supervision (form "C" contacts).
Low battery supervision (form "C" contacts).
Visual Indicators
AC input and DC output LED indicators.
Features
Power ON/OFF switch.
Electrical
Operating temperature: 0° C to 55° C (32° F to 131° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 25 BTU/Hr.
24VDC: 49 BTU/Hr.
System AC input VA requirement:
115VAC: 109.25VA.
230VAC: 138VA.
