Altronix NETWAYXTG 1G ETHERNET REPEATER POE/POE+

Altronix NETWAYXTG 1G ETHERNET REPEATER POE/POE+

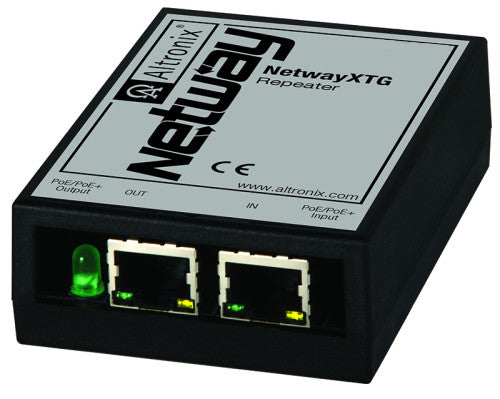

Altronix NetWayXTG PoE+ Gigabit repeater module interfaces with NetWay midspans to
extend data (video) 100m. NetWayXTG is PoE/PoE+, IEEE 802.3af (15W) and IEEE 802.3at
(30W) compliant. A maximum range of more than 600m is possible using multiple repeaters,
based on camera/device port requirement.

Data
Extends data an additional 100m for a total distance of 200m utilizing a single repeater

Ethernet
1Gb (10/100/1000Mbps)
Connectivity: RJ45, auto-crossover
Wire type: 4-pair CAT5e or better structured cable
Speed: 10/100/1000 BaseT, half/full duplex, auto negotiation

Power
IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant
Plug and play installation, no external power required

Indicators (LED)
Green LED: 1G, Blinking LED indicates activity
Yellow LED: 10/100, Blinking LED indicates activity
Blue LED: PoE/PoE+ Input present

Temperature
Operating: 0° C to 60° C (32° F to 140° F).
Storage: - 40° C to 70° C ( - 40° to 158° F).
Relative Humidity 85% +/- 5%.

Operating Altitude
- 304.8 to 3,048m ( - 1000 to 10,000 ft.).
