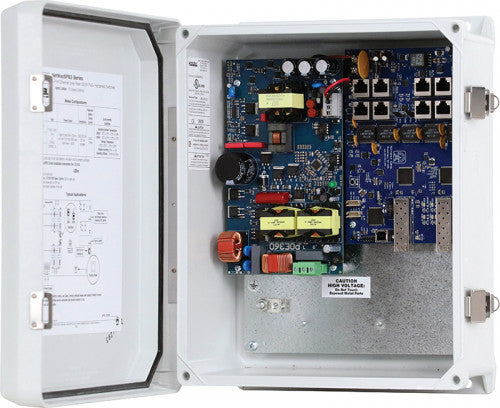

Altronix NETWAYSP8WP3 8PT FB MD CNV/2SFP/360W/NEMA4

Altronix NETWAYSP8WP3 8PT FB MD CNV/2SFP/360W/NEMA4 Altronix NetWaySP8WP3 supports up to 60W per port (360W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and eight (8) PoE+ (30W) or two (2) Hi-PoE (60W) Ethernet ports. NetWaySP8WP3 accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-end media converters/injectors. Embedded LINQ Technology allows to monitor, control, and report power and diagnostics from anywhere. Input Voltage: 115VAC, 60Hz, 3.5A or 230VAC, 50/60Hz, 2A Input Fuse: 5A/250V Power Output Maximum Power: Eight (8) PoE+ (30W) ports or two (2) Hi-PoE (60W) ports IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant 360W total power Integral surge protection SFP Ports: Two (2) Gigabit SFP ports Ethernet Ports Six (6) 10/100 Mbps and two (2) 10/100/1000 Mbps ports Connectivity: RJ45, auto-crossover Wire type: 4-pair CAT5e or higher structured cable Distance: up to 100m. Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation Battery Charging Type: 48VDC charging circuit charges sealed lead acid* or gel type* batteries (require separate ventilated enclosure) Failover: Upon AC loss, instantaneous (Batteries are sold separately) Indicators (LED) Individual PoE On LEDs for each port Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port ALOS LED indicates fiber connection for SFP port Heartbeat LED indicates proper operation of the unit VLAN Multiple management VLAN assignment 802.1Q Tagged VLAN Up to 10 VLAN groups. ID Range 2-4095 LINQ Technology Remote network power management allows for camera/device reset and diagnostic monitoring Provides local and/or remote access to critical information via LAN/WAN Email and Windows Dashboard Alert notifications report real-time events Event log tracks history Temperature Operating Temperature: 360W: – 40ºC to 45ºC (– 40ºF to 113ºF) 240W: – 30ºC to 55ºC (– 22ºF to 131ºF) 180W: – 30ºC to 65ºC (– 22ºF to 149ºF) 150W: – 30ºC to 75ºC (– 22ºF to 167ºF) Storage Temperature: - 30ºC to 85ºC (- 22º to 185ºF) Relative Humidity: 85% +/- 5% BTU/Hr.(approx.): 183 BTU/Hr. Operating Altitude - 304.8 to 2,000m.
