Altronix NETWAYSP8B 8-PORT FIBER MEDIA CONV, 2SFP

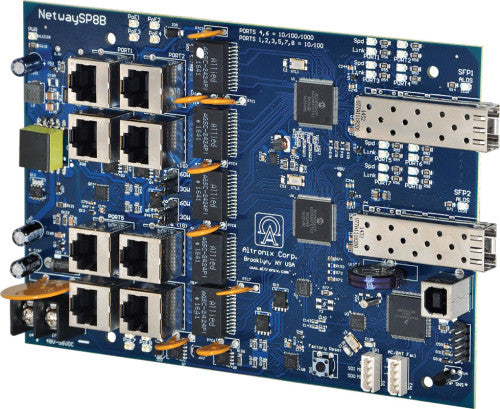

Altronix NETWAYSP8B 8-PORT FIBER MEDIA CONV, 2SFP Altronix NetWaySP8B PoE Switch board provides two (2) 1Gb SFP (Fiber) ports and eight (8) PoE+ (30W) or two (2) Hi-PoE (60W) ports, passing data for PoE/PoE+/Hi-PoE compliant devices. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control, and report power and diagnostics from anywhere. Input 48-56V UL Listed ITE power supply (up to 120W). Power Output Eight (8) ports PoE+ (30W) or up to two (2) Hi-PoE (60W) ports. IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant. 115W total power (supports 240W total, not evaluated by UL). Integral surge protection. Fiber Port Two (2) Gigabit SFP ports. Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included). Ethernet Ports Six (6) 10/100 Mbps and two (2) 10/100/1000 Mbps ports. Connectivity: RJ45, auto-crossover. Wire type: 4-pair CAT5 or better structured cable. Distance: up to 100m. Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation. Indicators (LED) Individual PoE On LEDs for each port. Individual IP Link status, 10/100Base-T/active LEDs for each port. ALOS LED indicates fiber connection for SFP port. Heartbeat LED indicates proper operation of the unit. VLAN Multiple management VLAN assignment. 802.1Q Tagged VLAN. Up to 10 VLAN groups. ID Range 2-4095. LINQ Technology Remote network management allows for camera/device reset and monitoring. Provides local and/or remote access to critical information via LAN/WAN. Email and Windows Dashboard Alert notifications report real-time diagnostics. Event log tracks history. Temperature Operating: 60W: - 40° C to 75° C ( - 40° F to 167° F). 75W: - 40° C to 70° C ( - 40° F to 158° F). 100W: - 40° C to 55° C ( - 40° F to 131° F). 115W: - 40° C to 45° C ( - 40° F to 113° F). Storage: - 40° C to 85° C ( - 40° F to 185° F). Relative Humidity: 85% +/- 5%. Operating Altitude - 304.8 to 2,000m.
