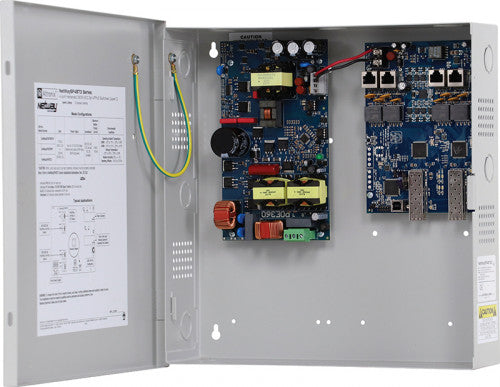

Altronix NETWAYSP4BTX3 4P FB MD CN/2SFP/BT/360W CH/WM

Altronix NETWAYSP4BTX3 4P FB MD CN/2SFP/BT/360W CH/WM Altronix NetWaySP4BTX3 supports up to 90W per port (360W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWaySP4BTX3 accommodates single/multi-mode fiber cable to deliver data from NetWay Spectrum head-end media converters/injectors. Embedded LINQ Technology allows to monitor, control, and report power and diagnostics from anywhere. Input Voltage: 115VAC, 60Hz, 3.5A or 230VAC, 50/60Hz, 2A Input Fuse: 5A/250V Power Output Maximum Power: Four (4) PoE ports rated at 90W each, 360W total power IEEE 802.3af (15W), IEEE 802.3at (30W), IEE 802.3bt (90W) compliant Integral surge protection SFP Ports: Two (2) Gigabit SFP ports Ethernet Ports Four (4) 10/100/1000 Mbps ports Connectivity: RJ45, auto-crossover Wire type: 4-pair CAT5e or higher structured cable Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation Battery Charging Type: 48VDC charging circuit charges sealed lead acid or gel type batteries (require separate ventilated enclosure) Failover: Upon AC loss, instantaneous (Batteries are sold separately) Indicators (LED) Individual PoE On LEDs for each port Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port ALOS LED indicates fiber connection for SFP port Heartbeat LED indicates proper operation of the unit VLAN Multiple management VLAN assignment 802.1Q Tagged VLAN Up to 10 VLAN groups. ID Range 2-4095 LINQ Technology Remote network power management allows for camera/device reset and diagnostic monitoring Provides local and/or remote access to critical information via LAN/WAN Email and Windows Dashboard Alert notifications report real-time events Event log tracks history Temperature Operating Temperature: 360W: – 30ºC to 65ºC (– 22ºF to 149ºF) 240W: – 30ºC to 70ºC (– 22ºF to 158ºF) Storage Temperature: - 30ºC to 85ºC (- 22º to 185ºF) Relative Humidity: 85% +/- 5% BTU/Hr.(approx.): 183 BTU/Hr. Operating Altitude - 304.8 to 2,000m.
