Altronix NETWAYSP4BTWPX 4PT FL MED CON/2SFP/PS/LGNEMA4

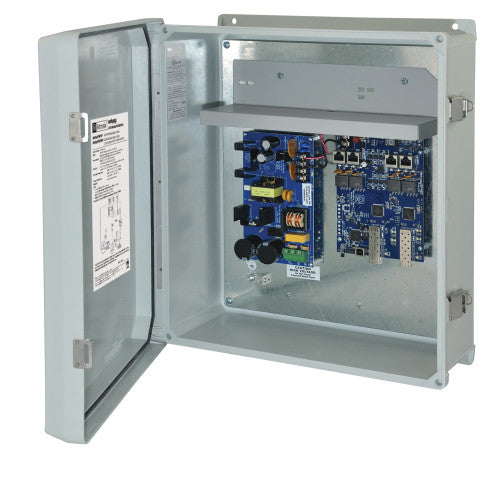

Altronix NETWAYSP4BTWPX 4PT FL MED CON/2SFP/PS/LGNEMA4 Altronix NetWaySP4BTWPX supports up to 90W per port (240W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWaySP4BTWP accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-end media converters/ injectors. Embedded LINQ Technology allows to monitor, control, and report power and diagnostics from anywhere. Input Voltage: 115VAC, 60Hz, 1.8A or 230VAC, 50/60Hz, 1A. Fusing: 5A/250V. Power Output Maximum Power: Four (4) PoE ports rated at 90W each, 240W total power. IEEE 802.3af (15W), IEEE 802.3at (30W), IEE 802.3bt (90W) compliant. Integral surge protection. SFP Ports Two (2) Gigabit SFP ports. Ethernet Ports Four (4) 10/100/1000 Mbps ports. Connectivity: RJ45, auto-crossover. Wire type: 4-pair CAT5 or better structured cable. Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation. Battery Charging Type: 24VDC charging circuit charges LiFePO₄ (Lithium Iron Phosphate) or sealed lead acid or gel type batteries (require separate ventilated enclosure). Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Indicators (LED) Individual PoE On LEDs for each port. Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port. ALOS LED indicates fiber connection for SFP port. Heartbeat LED indicates proper operation of the unit. VLAN Multiple management VLAN assignment. 802.1Q Tagged VLAN. Up to 10 VLAN groups. ID Range 2-4095. LINQ Technology Remote network management allows for camera/device reset and diagnostic monitoring. Provides local and/or remote access to critical information via LAN/WAN. Email and Windows Dashboard Alert notifications report real-time events. Event log tracks history. Environmental Temperature: Operating (240W): - 40° C to 55° C ( - 40° F to 131° F). Operating (180W): - 40° C to 65° C ( - 40° F to 149° F). Operating (150W): - 40° C to 75° C ( - 40° F to 167° F). Storage: - 40° C to 85° C ( - 40° F to 185° F). Relative Humidity: 85% +/- 5% BTU/Hr. (approx.): 61 BTU/Hr. Operating Altitude - 304.8 to 2,000m.
