Altronix NETWAYSP4BTB 4-PT FIBER MEDIA CONV/BT/2SFP

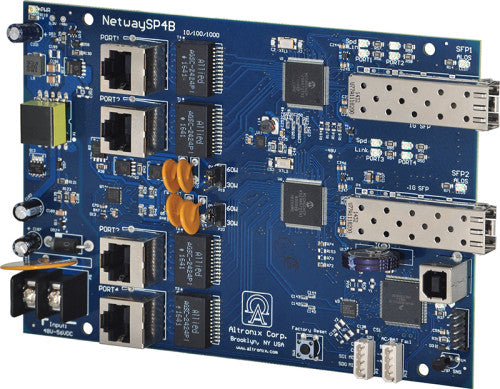

Altronix NETWAYSP4BTB 4-PT FIBER MEDIA CONV/BT/2SFP Altronix NetWaySP4BTB switch board supports up to 90W per port (320W total power) for deploying the latest high-powered IP devices in remote locations. It is equipped with two (2) 1Gb SFP ports to transmit data at long distances and four (4) 802.3bt compliant Ethernet ports. NetWaySP4BTB accommodates single/multi-mode fiber or composite cable (fiber+copper) to simultaneously deliver power and data from NetWay Spectrum head-end media converters/injectors. Embedded LINQ Technology allows to monitor, control, and report power and diagnostics from anywhere. Input 48V-57V (UL Listed ITE power supply) Output Four (4) 10/100/1000 Mbps Ethernet ports rated at 90W each (limited to 320W total power). IEEE 802.3af, 802.3at, 802.3bt compliant SFP Ports Two (2) Gigabit SFP ports Ethernet Ports Four (4) 10/100/1000 Mbps ports. Connectivity: RJ45, auto-crossover. Wire type: 4-pair CAT5 or higher structured cable. Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation. Indicators (LED) Individual PoE On LEDs for each port. Individual IP Link status, 10/100/1000 Base-T/active LEDs for each port. ALOS LED indicates fiber connection for SFP port. Heartbeat LED indicates proper operation of the unit. VLAN Multiple management VLAN assignment. 802.1Q Tagged VLAN. Up to 10 VLAN groups. ID Range 2-4095. LINQ Technology Remote network management allows for camera/device reset and diagnostic monitoring. Provides local and/or remote access to critical information via LAN/WAN. Email and Windows Dashboard Alert notifications report real-time events. Event log tracks history. Environmental Operating: (240W): - 40ºC to 55ºC (- 40ºF to 131ºF) (180W): - 40ºC to 65ºC (- 40ºF to 149ºF) (150W): - 40ºC to 75ºC (- 40ºF to 167ºF) Storage: - 40ºC to 85ºC (- 40ºF to 185ºF) Relative Humidity: 85% +/- 5% BTU/Hr. (approx.): 61 BTU/Hr. Operating Altitude - 304.8 to 2,000m.
