Altronix NETWAYSP41X 4PT MED CON/2SFP/NO LINQ/NEMA1

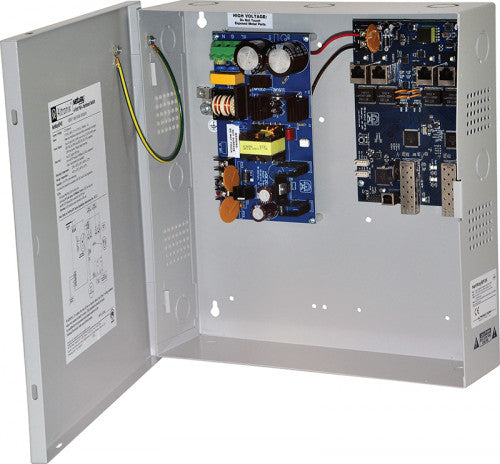

Altronix NETWAYSP41X 4PT MED CON/2SFP/NO LINQ/NEMA1 Altronix NetWaySP41X PoE+ Hardened Switch provides two (2) 1Gb SFP (Fiber) ports and four (4) PoE+ (30W) ports, passing data for PoE/PoE+ compliant devices. Cameras/edge devices may be located up to 100m from the unit. Input Voltage: 115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A Fusing: 5A/250V Power Output Maximum Power Four (4) PoE+ (30W) ports IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant 120W total power Integral surge protection Fiber Ports Two (2) Gigabit SFP port. Ethernet Ports Four (4) 10/100/1000 Mbps ports. Connectivity: RJ45, auto-crossover. Wire type: 4-pair CAT5e or better structured cable. Distance: up to 100m. Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation. Battery Charging Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). (Separate ventilated enclosure is required). Indicators (LED) Individual PoE On LEDs for each port. Individual IP Link status, 10/100Base-T/active LEDs for each port. ALOS LED indicates fiber connection for SFP port. Heartbeat LED indicates proper operation of the unit. Environmental Temperature: Operating (60W): - 40° C to 75° C ( - 40° F to 167° F). Operating (75W): - 40° C to 70° C ( - 40° F to 158° F). Operating (100W): - 40° C to 55° C ( - 40° F to 131° F). Operating (120W): - 40° C to 45° C ( - 40° F to 113° F). Storage: - 40° C to 85° C ( - 40° F to 185° F). Relative Humidity: 85% +/- 5% BTU/Hr. (approx.): 61 BTU/Hr. Operating Altitude - 304.8 to 2,000m.
