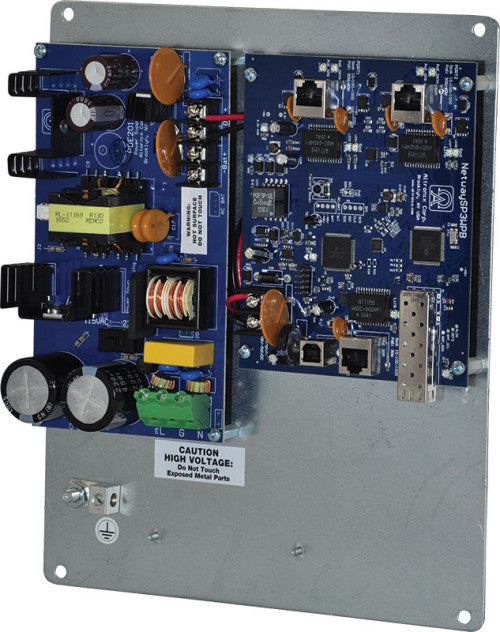

Altronix NETWAYSP3PL 3PORT FIBER MEDIA CONV/PS/BP
Altronix NetWaySP3PL Ethernet over Fiber PoE+ Hardened Switches provide a 1Gb SFP port and three (3) PoE+ (30W) ports or up to two (2) Hi-PoE (60W) ports, passing data and power to PoE/PoE+ compliant devices. Cameras/edge devices may be located up to 100m from the unit. Features also include an integral battery charger for applications requiring backup and embedded LINQ Technology to monitor, control, and report power and diagnostics from anywhere.
Input
115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A.
Power Output
Three (3) ports PoE+ (30W) or up to two (2) Hi-PoE (60W) ports.
IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
120W total power.
Integral surge protection.
Fiber Port
One (1) Gigabit SFP port.
Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).
Ethernet
Three (3) 10/100/1000 Mbps ports.
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair Cat-5 or better structured cable.
Distance: up to 100m.
Speed: 10/100/1000Mbps, half/full duplex, auto negotiation.
Battery Charging
Type: Sealed lead acid or gel type
Failover: Upon AC loss, instantaneous
(Batteries are sold separately).
Indicators (LED)
Individual PoE On LEDs for each port.
Individual IP Link status, 10/100Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.
LINQ Technology
Remote network management allows for camera/device reset and monitoring.
Provides local and/or remote access to critical information via LAN/WAN.
Email and Windows Dashboard Alert notifications report real-time diagnostics.
Event log tracks history.
Temperature
Operating:
60W: - 40° C to 75° C ( - 40° F to 167° F).
75W: - 40° C to 70° C ( - 40° F to 158° F).
100W: - 40° C to 55° C ( - 40° F to 131° F).
120W: - 40° C to 45° C ( - 40° F to 113° F).
Storage: - 40° C to 85° C ( - 40° F to 185° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 61 BTU/Hr.
Operating Altitude
- 304.8 to 2,000m.
