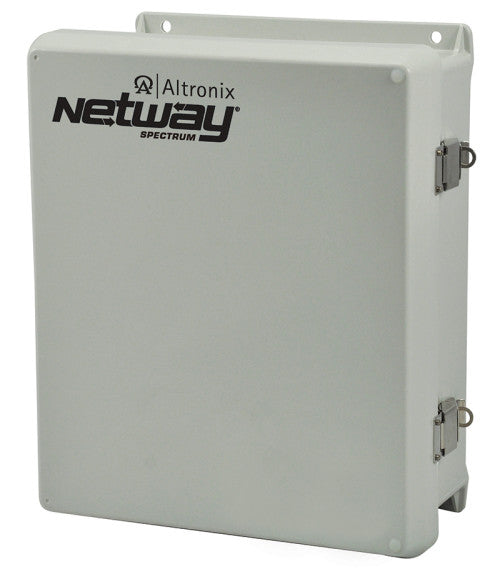

Altronix NETWAYSP3LWPX 3PT SWITCH/PS/LIPO4/LG NEMA4
Altronix NetWaySP3LWPX PoE+ Outdoor Hardened Switch provides one (1) 1Gb SFP (Fiber) port and three (3) PoE/PoE+ ports rated up to 60W each passing data for PoE/PoE+ compliant devices. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control, and report power and diagnostics from anywhere. This unit is designed to support a single 12V LiFePO4 (Lithium Iron Phosphate) battery for high storage and charge/discharge cycle life reliability.
Input
Voltage: 115VAC, 60 Hz, 2.5A or 230VAC, 50/60 Hz, 1.3A.
Input Fuse: 5A/250V
Power Output
Maximum Power: Three (3) ports PoE/PoE+ ports rated up to 60W each
IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant.
75W total power.
Integral surge protection.
Fiber Port
One (1) Gigabit SFP port.
Ethernet Ports
Three (3) 10/100/1000 Mbps ports.
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair Cat-5 or better structured cable.
Distance: up to 100m.
Speed: 10/100/1000Mbps, half/full duplex, auto negotiation.
Battery Charging
Capacity: One (1) 12V LiFePO4 (Lithium Iron Phosphate) battery
Failover Upon AC loss, instantaneous.
(Batteries are sold separately).
Indicators (LED)
Individual PoE On LEDs for each port.
Individual IP Link status, 10/100Base-T/active LEDs for each port.
ALOS LED indicates fiber connection for SFP port.
Heartbeat LED indicates proper operation of the unit.
LINQ Technology
Remote network management allows for camera/device reset and monitoring.
Provides local and/or remote access to critical information via LAN/WAN.
Email and Windows Dashboard Alert notifications report real-time diagnostics.
Event log tracks history.
Temperature
Operating:
60W: - 40° C to 75° C ( - 40° F to 167° F).
75W: - 40° C to 70° C ( - 40° F to 158° F).
Storage: - 40° C to 85° C ( - 40° F to 185° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 61 BTU/Hr.
Operating Altitude
- 304.8 to 2,000m.
