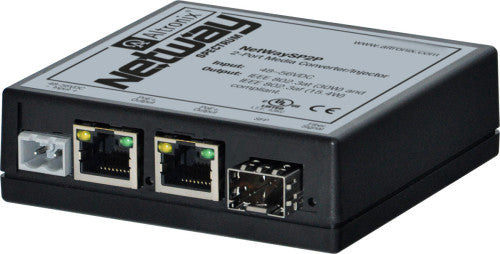

Altronix NetWaySP2P 3-Port PoE+ hardened switch converts a single Fiber (1000Base-X/
SX/LX) into two (2) Ethernet ports (10/100/1000 Mbps) and provides PoE/PoE+ power to connected devices. Mounted in modular plastic case, it features auto detection and protection of legacy non-PoE cameras/devices.

Input
48-56VDC @ 1.9A (95W).

Fiber Ports
One (1) 1Gb SFP port.

Output Power
Two (2) PoE / PoE+ ports, rated up to 30W max.
IEEE 802.3af and IEEE 802.3at compliant.

Ethernet
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e.
Speed: 10/100/1000 Mbps.
Distance: up to 100m.

Indicators (LED)
Yellow/Green LEDs:
IP Link status, 10/100/1000 Base-T/active.

Green PoE LED:
Indicate PoE present.

Green SFP (Fiber) LED:
Indicates SFP connection.

Features
Auto detection and protection of legacy non-PoE cameras/devices.
Compact insulated housing.

Temperature
Operating (30W): -40ºC to 70ºC ( -40ºF to 158ºF).
Storage: - 40ºC to 75ºC ( - 40º to 167ºF).
Relative Humidity: 85% +/- 5%.

Operating Altitude
- 304.8 to 2,000m.
