Altronix NETWAYSP2BTWPX 2PT 802.3BT PS/INJ/LG OUT

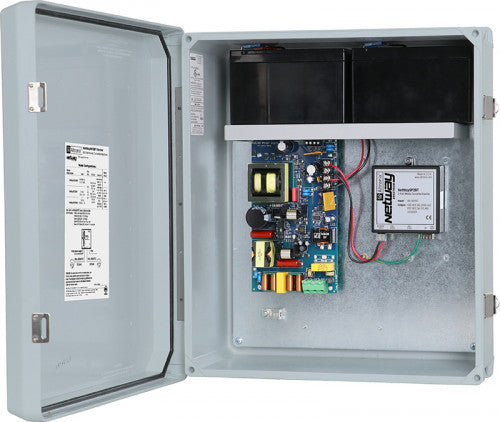

Altronix NetWaySP2BTWP Outdoor 802.3bt media converter/injector provides two (2) 802.3bt (4PPoE) ports up to 180W total and accommodates Fiber (1000Base-X/SX/LX) or structured cable to transmit data. Unit can be deployed with structured cable, conventional single/multimode fiber or composite cable (fiber + copper combined).
Cameras/edge devices may be located up to 100m from the unit.
NEMA 4/4X IP66-11 enclosure accommodates up to four (4) batteries (48V of backup).
Input
Power: 115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A
Input Fuse: 5A/250V
Fiber Port
One (1) 1Gb SFP port.
PoE/Data Ports
Two (2) ports rated up to 90W max. each.
IEEE 802.3af, 802.3at and 802.3bt compliant
Connectivity: RJ45, auto-crossover
Wire type: 4-pair CAT5e
Distance: up to 100m
Speed: 10/100/1000 Mbps
Battery Charging
Type: LiFePO4 (Lithium Iron Phosphate) or sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
(Batteries are sold separately).
Separate ventilated enclosure is required
Indicators (LED)
Yellow/Green RJ45 LEDs:
Yellow: 10/100
Green: 10/100/1000
Green PoE LED:
PoE present.
Green SFP (Fiber) LED:
SFP connection.
Features
Auto detection and protection of legacy non-PoE cameras/devices.
Temperature
Operating Temperature:
60W: - 40ºC to 75ºC (- 40ºF to 167ºF).
90W: - 40ºC to 60ºC (- 40ºF to 140ºF).
180W: - 30ºC to 60ºC (- 22ºF to 140ºF).
Storage Temperature: - 40ºC to 85ºC (- 40ºF to 185ºF).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 61 BTU/Hr.
Operating Altitude
- 304.8 to 2,000m.
