Altronix NETWAYSP2BTWPN 2PT 802.3BT CONV/INJECTOR/OUT

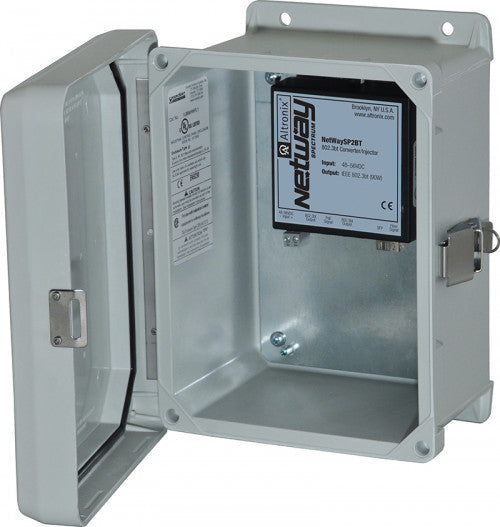

Altronix NETWAYSP2BTWPN 2PT 802.3BT CONV/INJECTOR/OUT Altronix NetWaySP2BTWPN Outdoor 802.3bt media converter/injector provides two (2) 802.3bt (4PPoE) ports up to 180W total and accommodates Fiber (1000Base-X/SX/LX) or structured cable to transmit data. Unit can be deployed with structured cable, conventional single/multimode fiber or composite cable (fiber + copper combined). Cameras/edge devices may be located up to 100m from the unit. Input 48-56VDC @ 3.5A (180W). Fiber Port One (1) 1Gb SFP port. PoE/Data Ports Two (2) ports rated up to 90W max. each IEEE 802.3af, 802.3at and 802.3bt compliant Connectivity: RJ45, auto-crossover Wire type: 4-pair CAT5e Distance: up to 100m Speed: 10/100/1000 Mbps Indicators (LED) Yellow/Green RJ45 LEDs: Yellow: 10/100 Green: 10/100/1000 Green PoE LED: Indicate PoE present. Green SFP (Fiber) LED: Indicates SFP connection. Features Auto detection and protection of legacy non-PoE cameras/devices. Temperature Operating Temperature: 60W: - 40ºC to 75ºC (- 40ºF to 167ºF). 90W: - 40ºC to 60ºC (- 40ºF to 140ºF). 180W: - 30ºC to 60ºC (- 22ºF to 140ºF). Storage Temperature: - 40ºC to 85ºC ( - 40º to 185ºF). Relative Humidity: 85% +/- 5%. Operating Altitude - 304.8 to 2,000m.
