Altronix NETWAYSP1BT2 802.3bt Switch/Conv-90W/2-SFP

Altronix NETWAYSP1BT2 802.3bt Switch/Conv-90W/2-SFP

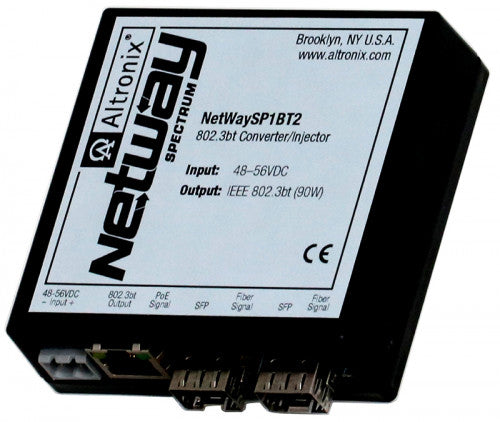

Altronix NetWaySP1BT2 802.3bt media converter/injector provides a single 802.3bt (4PPoE) port up to 90W and accommodates two (2) fiber optic cables (1Gb) to transmit data. Units can be deployed with structured cable and conventional single/multimode fiber. Cameras/edge devices may be located up to 100m from the unit.

Input
48-56VDC @ 1.9A (95W)

Fiber Port
Dual 1Gb SFP ports (Daisy-chain communication)

PoE Port
Single port rated up to 90W max
IEEE 802.3af, 802.3at and 802.3bt compliant
10/100/1000

Indicators (LED)
Yellow/Green LEDs:
IP Link status, 10/100/1000 Base-T/active

Green PoE LED:
Indicate PoE present.

Green SFP (Fiber) LED:
Indicates SFP connection.

Features
Auto detection and protection of legacy non-PoE cameras/devices
Compact insulated housing

Temperature
Operating (90W): – 40ºC to 75ºC (– 40ºF to 167ºF)
Storage: – 40ºC to 75ºC (– 40ºF to 167ºF)

Relative Humidity
85% +/– 5%

Operating Altitude
- 304.8 to 2,000m.
