Description

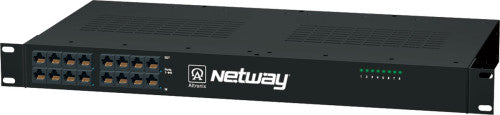

NETWAY8V 16 PORT MIDSPAN POE 220V
Altronix NetWay8V Midspans provide power and pass data (video) for PoE compliant cameras/devices. Eight ports in a space saving 1U EIA 19" rack mount chassis. Cameras/devices may be located up to 100m from the NetWay unit. A NetWayXT repeater module can be utilized to extend the distance an additional 100m for a total range of up to 200m. A maximum range of 600m is possible using multiple repeaters, based on camera/device port requirement. NetWay Midspans are capable of supporting non-PoE compliant fixed and PTZ IP cameras by utilizing NetWay1512 or NetWay3012 adapters.
Input
220VAC 50/60Hz, 1.8A.
Primary fuse (internal) is rated at 5A/250V.
Power
Unit provides up to 30W max. full power per port.
Total power: 150W.
IEEE 802.3af (PoE) and IEEE 802.3at (PoE +) compliant.
Short circuit protection.
Functions
Auto detection and protection of legacy non-PoE cameras/edge devices.
Features
Easy plug and play installation.
Safe and cost effective power distribution over CAT5/5E/6 LAN infrastructure.
Automatic detection and protection of legacy non-PoE cameras.
Port status LED indicators.
Illuminated master power disconnect circuit breaker with manual reset (switch).
IEC 320 - 3-wire grounded line cord (detachable).
Temperature
Operating: - 20ºC to 40ºC ( - 4ºF to 104ºF).
Storage: - 20º to 70ºC ( - 4ºF to 158ºF).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.): 77 BTU/Hr.
System AC input VA requirement: 396VA.
Operating Altitude
- 304.8 to 3,048m.
