Altronix NETWAY5PQWPN NETWAY5PWPN WITH LINQ TECH

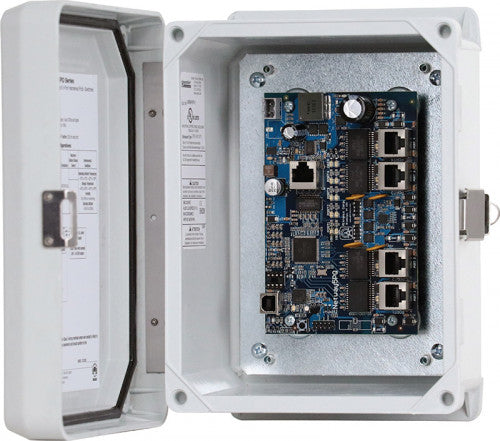

Altronix NETWAY5PQWPN NETWAY5PWPN WITH LINQ TECH Altronix NetWay5PQWPN hardened PoE+ switch provides power for up to four (4) IP devices, such as PoE access controllers and cameras – utilizing a single Ethernet cable going to the headend. Other applications may include solar power, as well as integrating network door access systems with video surveillance. Features embedded LINQ™ Technology to remotely monitor, control, and report power/diagnostics. Input Power 12 or 24VDC from a UL Listed power source or a solar panel with nominal 24V (~12-35V) output. Power Consumption: 6W (0.25A@24V or 0.5A@12V) Power Output Maximum Power Four (4) 10/100/1000 Mbps PoE/PoE+ (rated up to 30W) ports 60W (at 12VDC) or 120W (at 24VDC) total power Integral surge protection Uplink Port Single data port Ethernet Ports Five (5) 10/100/1000 Mbps ports Connectivity: RJ45, auto-crossover Wire type: 4-pair CAT5 or better structured cable Distance: up to 100m. Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation LINQ Technology Remote network power management allows for device reset and monitoring Provides local and/or remote access to critical information via LAN/WAN Email and Windows Dashboard Alert notifications report real-time diagnostics Event log tracks history VLAN Multiple management VLAN assignment 802.1Q Tagged VLAN Up to 10 VLAN groups. ID Range 2-4095 LED Indicators Individual PoE On LEDs for each port Individual IP Link status, 10/100Base-T/active LEDs for each port Temperature Operating - 30ºC to 70ºC (- 22ºF to 158ºF). Storage: - 40ºC to 85ºC (- 40ºF to 185ºF). Relative Humidity: 85% +/- 5%. Operating Altitude: -304.8 to 2,000m. Operating Altitude - 304.8 to 2,000m. Mounting hardware is included
