Altronix NETWAY5BTX 5PT BT SWITCH/PS/NO LINQ/BC300

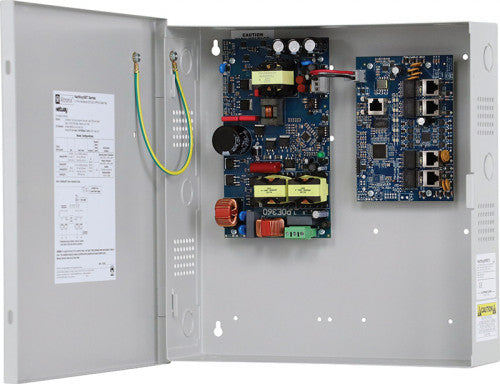

Altronix NETWAY5BTX 5PT BT SWITCH/PS/NO LINQ/BC300 Altronix NetWay5BTX powered hardened 4PPoE switch provides a network data uplink and four (4) IEEE802.3af/3at/3bt PoE ports rated at 90W each, with 240W total power. It can power IP devices, such as PoE access controllers and cameras. Other applications may include integrating network door access systems with video surveillance. Input Voltage: 115VAC, 60Hz, 1.8A or 230VAC, 50/60Hz, 1A Input Fuse: 5A/250V Power Output Maximum Power: Four (4) 1IEEE802.3af/3at/3bt PoE ports rated at 90W each IEEE802.3af/3at/3bt compliant 240W total power Integral surge protection Uplink Port: Single data port Ethernet Ports Five (5) 10/100/1000 Mbps ports Connectivity: RJ45, auto-crossover Wire type: 4-pair CAT5e or higher structured cable Distance: up to 100m. Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation Battery Charging Type: 24VDC charging circuit charges LiFePO₄ (Lithium Iron Phosphate) or sealed lead acid or gel type batteries (require separate ventilated enclosure) Failover: Upon AC loss, instantaneous (Batteries are sold separately) Indicators (LED) Individual PoE On LEDs for each port Individual IP Link status, 10/100Base-T/active LEDs for each port Temperature Operating Temperature: 240W: – 30ºC to 55ºC (– 22ºF to 131ºF) 180W: – 30ºC to 65ºC (– 22ºF to 149ºF) 150W: – 30ºC to 75ºC (– 22ºF to 167ºF) Storage Temperature: - 40ºC to 85ºC (- 40º to 185ºF) Relative Humidity: 85% +/- 5% BTU/Hr.(approx.): 123 BTU/Hr. Operating Altitude - 304.8 to 2,000m.
