Description
Altronix NETWAY5BTQWPX 4PT SWITCH/PS/LGNEMA4

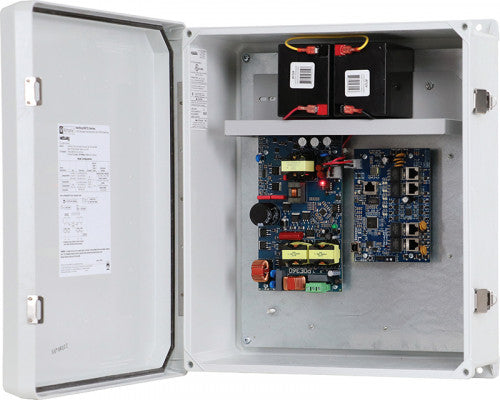

Altronix NetWay5BTQWP powered hardened 4PPoE switch provides a network data uplink
and four (4) IEEE802.3af/3at/3bt PoE ports rated at 90W each, with 240W total power. It can power IP devices, such as PoE access controllers and cameras. Other applications may include integrating network door access systems with video surveillance. Features embedded LINQ™ Technology to remotely monitor, control, and report power/diagnostics. Enclosure accommodates up to four (4) 12VDC/4AH batteries (proper ventilation is required).
Input
Voltage: 115VAC, 60Hz, 1.8A or 230VAC, 50/60Hz, 1A
Input Fuse: 5A/250V
Power Output
Maximum Power:
Four (4) 1IEEE802.3af/3at/3bt PoE ports rated at 90W each IEEE802.3af/3at/3bt compliant 240W total power
Integral surge protection
Uplink Port:
Single data port
Ethernet Ports
Five (5) 10/100/1000 Mbps ports
Connectivity: RJ45, auto-crossover
Wire type: 4-pair CAT5e or higher structured cable
Distance: up to 100m.
Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation
LINQ Technology
Remote network power management allows for device reset and monitoring
Provides local and/or remote access to critical information via LAN/WAN
Email and Windows Dashboard Alert notifications report real-time diagnostics
Event log tracks history
VLAN
Multiple management VLAN assignment
802.1Q Tagged VLAN
Up to 10 VLAN groups. ID Range 2-4095
Battery Charging
Type: 24VDC charging circuit charges LiFePO4 (Lithium Iron Phosphate) or sealed lead acid or gel type batteries
Failover: Upon AC loss, instantaneous
(Batteries are sold separately)
Indicators (LED)
Individual PoE On LEDs for each port
Individual IP Link status, 10/100Base-T/active LEDs for each port
Temperature
Operating Temperature:
240W: – 30ºC to 55ºC (– 22ºF to 131ºF)
180W: – 30ºC to 65ºC (– 22ºF to 149ºF)
150W: – 30ºC to 75ºC (– 22ºF to 167ºF)
Storage Temperature: - 40ºC to 85ºC (- 40º to 185ºF)
Relative Humidity: 85% +/- 5%
BTU/Hr.(approx.): 123 BTU/Hr.
Operating Altitude
- 304.8 to 2,000m.
