Altronix NETWAY5B 5-PORT SWITCH/10/100/1000MBPS

Altronix NETWAY5B 5-PORT SWITCH/10/100/1000MBPS

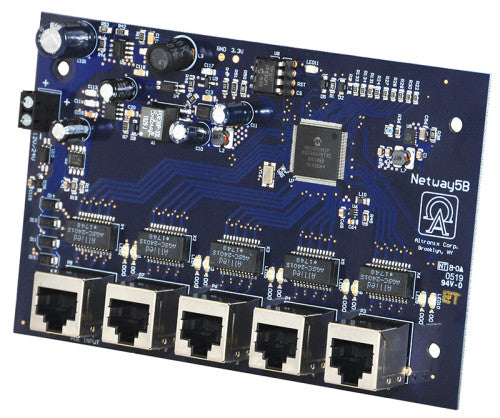

Altronix Netway5B is a space-saving hardened switch board that mounts easily inside of Altronix enclosures, improving installation efficiency. It is an ideal solution in all Maximal and Trove series products, allowing for the connection of up to 4 IP devices within the enclosure – utilizing a single Ethernet cable going to the headend.

Input
PoE (53.5V), current draw: 1.8W
12VDC, current draw: 150mA
24VDC, current draw: 75mA

Output
Five (5) data ports.

Ethernet
Five (5) 10/100/1000 Mbps ports.
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5e or higher structured cable.
Distance: up to 100m.
Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.

LED Indicators
Individual PoE On LEDs for each port.
Individual IP Link status, 10/100Base-T/active LEDs for each port.

Temperature
Operating - 30ºC to 70ºC (- 22ºF to 158ºF).
Storage: - 40ºC to 85ºC (- 40ºF to 185ºF).
Relative Humidity: 85% +/- 5%.
Operating Altitude: -304.8 to 2,000m.

Operating Altitude
- 304.8 to 2,000m.

Mounting hardware included
