Altronix NETWAY4EWPX 4PORT POE+ SW 1G SFP NEMA4 LG

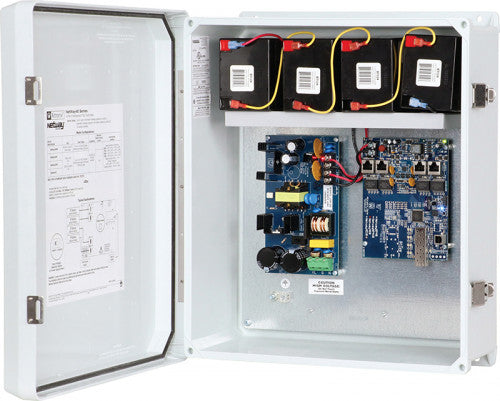

Altronix NETWAY4EWPX 4PORT POE+ SW 1G SFP NEMA4 LG Altronix NetWay4EWPX Outdoor PoE+ Hardened Switch provides a 1Gb SFP port and four (4) PoE+ (30W) ports. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control and report power and diagnostics from anywhere. Input Voltage: 115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A Input Fuse: 5A/250V Power Output Maximum Power Four (4) 10/100/1000 Mbps PoE/PoE+ (up to 30W) ports or IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant 120W total power Integral surge protection Fiber Port One (1) Gigabit SFP port LED Indicators Individual PoE On LEDs for each port Individual IP Link status, 10/100Base-T/active LEDs for each port ALOS LED indicates fiber connection for SFP port Heartbeat LED indicates proper operation of the unit LINQ Technology Remote network management allows for camera/device reset and monitoring Provides local and/or remote access to critical information via LAN/WAN Email and Windows Dashboard Alert notifications report real-time diagnostics Event log tracks history Battery Charging Capacity: 4AH/12VDC (4 within enclosure) Type: Sealed lead acid or gel type Failover Upon AC loss, instantaneous (Batteries are sold separately). Temperature Operating: 60W: – 40ºC to 75ºC (– 40ºF to 167ºF) 75W: – 40ºC to 70ºC (– 40ºF to 158ºF) 100W: – 40ºC to 55ºC (– 40ºF to 131ºF) 120W: – 40ºC to 45ºC (– 40ºF to 113ºF) Storage: – 40ºC to 85ºC (– 40ºF to 185ºF) Relative Humidity 85% +/– 5% BTU/Hr. (approx.) 61 BTU/Hr. Operating Altitude - 304.8 to 2,000m.
