Altronix NETWAY4EWP 4PORT POE+ SW 1G SFP NEMA4

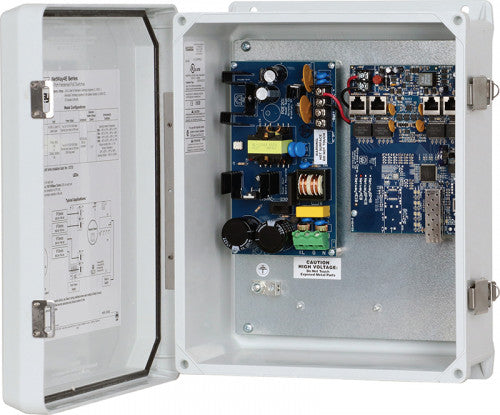

Altronix NETWAY4EWP 4PORT POE+ SW 1G SFP NEMA4 Altronix NetWay4EWP Outdoor PoE+ Hardened Switch provides a 1Gb SFP port and four (4) PoE+ (30W) ports. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control, and report power and diagnostics from anywhere. Input 115VAC 60 Hz, 3A or 230VAC 50/60 Hz, 1.65A. Power Output Four (4) 10/100/1000 Mbps PoE/PoE+ (up to 30W) ports or two (2) Hi-PoE (60W) ports. IEEE 802.3at (30W) and IEEE 802.3af (15W) compliant. 120W total power. Integral surge protection. Fiber Port One (1) Gigabit SFP port. Ethernet Connectivity: RJ45, auto-crossover. Wire type: 4-pair Cat-5 or better structured cable. Distance: up to 100m. Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation. Battery Charging Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Indicators (LED) Individual PoE On LEDs for each port. Individual IP Link status, 10/100Base-T/active LEDs for each port. ALOS LED indicates fiber connection for SFP port. Heartbeat LED indicates proper operation of the unit. Temperature Operating: 60W: - 40° C to 75° C ( - 40° F to 167° F). 75W: - 40° C to 70° C ( - 40° F to 158° F). 100W: - 40° C to 55° C ( - 40° F to 131° F). 120W: - 40° C to 45° C ( - 40° F to 113° F). Storage: - 40° C to 85° C ( - 40° F to 185° F). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 61 BTU/Hr. Operating Altitude - 304.8 to 2,000m. LINQ Technology Remote network management allows for camera/device reset and monitoring. PoE port management via Dashboard IP management program. Provides local and/or remote access to critical information via LAN/WAN. Email and Windows Dashboard Alert notifications report real-time diagnostics. Event log tracks history.
