Description
Altronix NETWAY4E1LWPX 4P SWITCH/SFP/PS LIPO4/LNEMA4

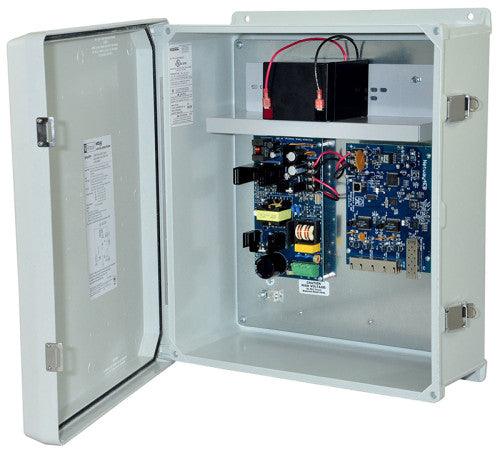

Altronix NetWay4E1LWPX PoE+ Outdoor Hardened Switch provides one (1) 1Gb SFP (Fiber) port and four (4) PoE+ (30W) ports passing data for PoE/PoE+ compliant devices. Cameras/edge devices may be located up to 100m from the unit. NetWay4E1LWPX is designed to support a single 12V LiFePO4 (Lithium Iron Phosphate) battery for high storage and charge/discharge cycle life reliability.
Input
115VAC, 60Hz, 2.5A or 230VAC, 50/60Hz, 1.3A.
Power Output
Four (4) 10/100/1000 Mbps Ethernet ports rated at 30W each (limited to 75W total power).
IEEE 802.3af, 802.3at compliant.
Integral surge protection.
Fiber Port
One (1) Gigabit SFP port.
Use with SFP module 1000Base-X (1Gb), compliant to Class 1 laser product (not included).
Ethernet Ports
Four (4) 10/100/1000 Mbps ports.
Connectivity: RJ45, auto-crossover.
Wire type: 4-pair CAT5 or better structured cable.
Distance: up to 100m.
Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.
Battery Charging
Built-in charger for 12V LiFePO4 (Lithium Iron Phosphate) battery.
Caution: Do not use lead acid or gel type batteries. Automatic switch over to stand-by battery when AC fails. (Batteries are sold separately). LEDs Individual PoE On LEDs for each port. Individual IP Link status, 100/1000 Base-T/active LEDs for each port. ALOS LED indicates fiber connection for SFP port. Heartbeat LED indicates proper operation of the unit. Environmental Operating Ambient Temperature: 60W: - 40ºC to 75ºC (- 40°F to 167°F); 75W: - 40ºC to 70ºC (- 40°F to 158°F); (if LiFePO4 battery is installed within enclosure, the temperature range is 0°C to 40°C (32°F to 104°F). Storage Temperature: – 40ºC to 85ºC (– 40ºF to 185ºF). Relative Humidity: 85%, +/– 5% Operating Altitude: – 304.8 to 2,000m. Mechanical NEMA4/4X, IP66 Rated enclosure for outdoor use. Accommodates one (1) 12V LiFePO4 (Lithium Iron Phosphate) battery.
Note: LiFePO4 batteries have a restricted temperature range (0°C to 40°C).
