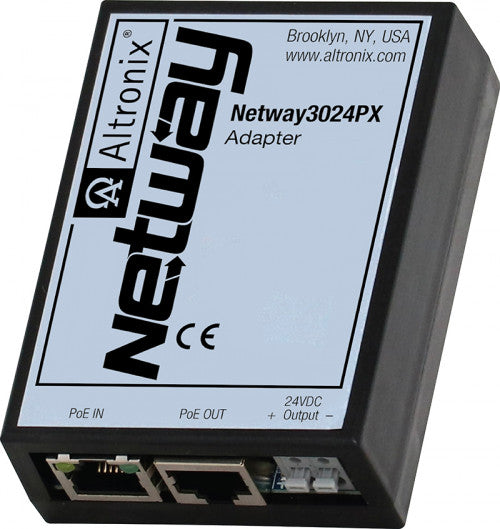

Altronix NETWAY3024PX 90W BT ADAPTER 24W/12V

Altronix NETWAY3024PX 90W BT ADAPTER 24W/12V

Altronix Netway3024PX converts 802.3bt (90W) to simultaneous 24VDC/1A and 802.3at PoE+ (25W) outputs for applications including PoE cameras and external microphones, control boards, switching equipment, and more for 60W total output.

Input
802.3bt (90W) 4PPoE

Function
Converts 802.3bt (90W) to 802.3at PoE+ (25W) and 24VDC (25W/1A) simultaneously

PoE Port
Single port rated up to 25W max.
IEEE 802.3af, 802.3at compliant
Connectivity: RJ45, auto-crossover
Wire type: 4-pair CAT5e
Distance: up to 100m
Speed: 10/100/1000 Mbps

Power Output
24VDC up to 1A
60W total power combined with PoE

Features
Auto detection and protection of legacy non-PoE cameras/devices
Compact insulated housing

Indicators (LED)
Yellow and Green LEDs: IP Link status, 10/100/1000 Base-T/active
Green LED: PoE ON
Red LED: Power ON

Temperature
Operating temperature (90W): – 40ºC to 75ºC (– 40ºF to 167ºF)
Storage temperature: – 40ºC to 75ºC (– 40ºF to 167ºF)
Relative Humidity 85% +/- 5%.
Operating Altitude: - 304.8 to 2,000m.
