Altronix NETWAY1D MIDSPAN POE/POE+/HI POE/56VDC

Altronix NETWAY1D MIDSPAN POE/POE+/HI POE/56VDC

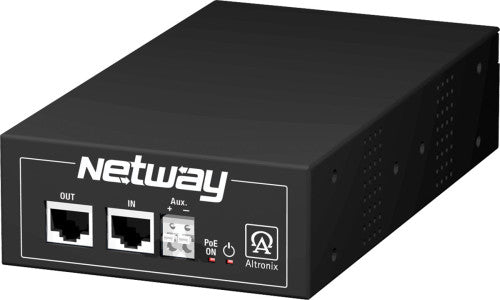

Altronix NetWay1D indoor single port midspan injector provides PoE (15W), PoE+ (30W), and Hi-PoE (60W). The unit is also equipped with a 56VDC Class 2 rated power-limited output for use with Altronix eBridge™ Plus receivers. NetWay1D operates at 115VAC or 230VAC input.

Input
115VAC, 60Hz, 1.2A or 230VAC, 50/60Hz, 0.75A.

Power Output
Maximum power: Hi-PoE (60W).
Power provided using all 4 pairs on CAT5e cable.
IEEE 802.3at (30W) & IEEE 802.3af (15W) compliant or Hi-PoE (60W).
Aux. 56VDC/60W Class 2 rated power-limited output.
Integral surge protection.

Ethernet
Connectivity: RJ45.
Wire type: 4-pair CAT5e or higher cable.
Distance: up to 100m.
Speed: 10/100/1000 Mbps, half/full duplex, auto negotiation.

Environmental
Operating Temperature:
30W: - 30° C to 50° C ( - 22° F to 122° F).
60W: - 30° C to 40° C ( - 22° F to 104° F).

Storage:
- 30° C to 85° C ( - 22° F to 185° F).

Relative Humidity 85% +/- 5%.

Operating Altitude
- 304.8m to 609.6m.
