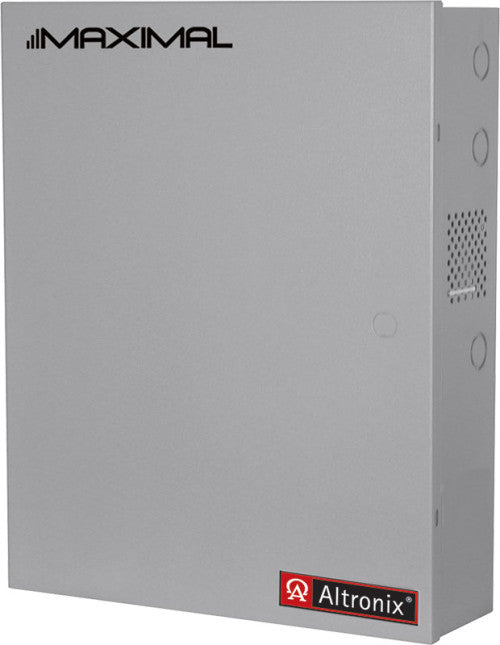

Altronix MAXIMAL55E 12VDC@20A, 2 OUT
This unit provides system designers and installers with "maximum" power choices and the highest levels of versatility. It provides 12VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control applications.
Input
115VAC 60Hz, 5.2A input.
Output
12VDC outputs.
Maximum output current Options:
A) 12VDC @ 10A plus 12VDC @ 10A.
Filtered and electronically regulated outputs (built-in power supply).
Thermal and short circuit protection with auto reset.
Fuse Ratings
Power Supply input fuse rated @ 3.5A/250V.
Supervision
AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery and battery presence supervision (form "C" contact).
Battery Charging
Capacity: 12AH/12VDC (4 within enclosure); 40AH/65AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
(Batteries are sold separately).
Visual Indicators
AC input and DC output LED indicators.
Temperature
Operating: 0ºC to 49ºC (32ºF to 120ºF).
Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 12VDC & 123 BTU/Hr.
System AC input VA requirement: 598VA.
