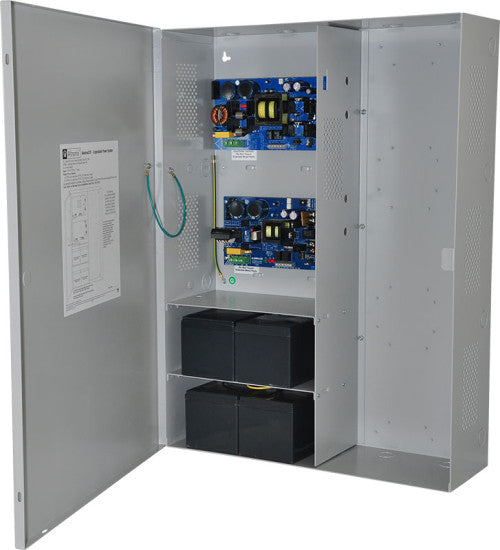

Altronix MAXIMAL33E 12VDC@6A/24VDC@6A, 2 OUT
Maximal33E provides system designers and installers with "maximum" power choices and the highest levels of versatility. It provides 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. It includes AC fail, low battery and battery presence monitoring. Optional Altronix® field installable sub-assemblies provide multiple outputs and a wide range of features for specific Access Control and Fire Alarm applications.
Input
115VAC 60Hz, 7.0A input.
Output
12VDC and/or 24VDC outputs.
Maximum output current Options:
A) 12VDC @ 6A plus 12VDC @ 6A.
B) 24VDC @ 6A plus 24VDC @ 6A.
C) 12VDC @ 6A plus 24VDC @ 6A.
Filtered and electronically regulated outputs (built-in power supply).
Thermal and short circuit protection with auto reset.
Fuse Ratings
Power Supply input fuse rated @ 3.5A/250V.
Supervision
AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
Low battery and battery presence supervision (form "C" contact).
Battery Charging
Capacity: 12AH/12VDC (4 within enclosure); 40AH/65AH (requires separate enclosure).
Type: Sealed lead acid or gel type.
Failover: Upon AC loss, instantaneous.
(Batteries are sold separately).
Visual Indicators
AC input and DC output LED indicators.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 74 BTU/Hr.
24VDC: 147 BTU/Hr.
12VDC & 24VDC: 111 BTU/Hr.
System AC input VA requirement: 805VA.
