Altronix MAXFIT7F16APS EFLOW104NB/VR6/2-ACMS8/PD16W

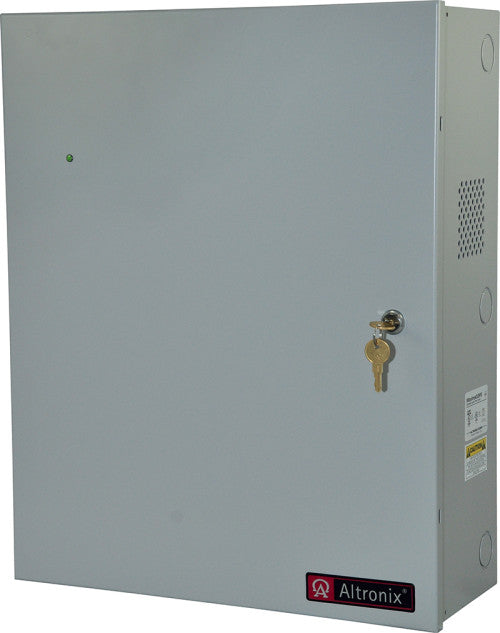

Altronix MAXFIT7F16APS EFLOW104NB/VR6/2-ACMS8/PD16W Altronix MaxFit7F16APS Access Power Controller distributes and switches power to access control systems and accessories. It converts a 120VAC, 60Hz input into sixteen (16) distributed 24VDC fuse protected outputs and sixteen (16) independently controlled 12VDC or 24VDC fuse protected relay outputs. Fail-Safe/Fail-Secure power outputs may be converted to dry form “C” contacts. Relays are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) relayed outputs. eFlow104NB Power Supply/Charger Input Voltage: 120VAC, 60Hz, 4.5A max. Main Fuse: 6.5A / 250V. Outputs Voltage: 24VDC @ 10A. Auxiliary: 1A (unswitched). Protection: Overvoltage protection. Filtered and regulated. Battery Charging Type: Sealed lead acid or gel type. Fuse Rating: 10A/32VDC. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators (LED) AC Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. PD16W Power Distribution Module Input Voltage: 24VDC from eFlow104NB. Outputs Voltage: 24VDC. Sixteen (16) fuse protected outputs. 3.5A per output max. Output Fuses: 3.5A/250V. Indicators (LED) Green LED: DC Output. VR6 Voltage Regulator Input/Output Voltage Range: 24VDC @ 10A = Output: 12VDC @ 6A. Output 12VDC regulated output. Output rating 6A max. Surge suppression. Indicators (LED) Input: Indicates input voltage is present. Output: Indicates normal operating condition. Two (2) ACMS8 Dual Input Access Power Controllers Input Two (2) independent low voltage inputs. Input Fuse: 15A/32V. Trigger Inputs: Eight (8) individually controlled trigger inputs: a) Normally open (NO) inputs. b) Normally closed (NC) inputs. c) Open collector sink inputs. d) Wet Input (5VDC - 24VDC) with 10K resistor. e) Any combination of the above. Outputs Fuse protected outputs rated @ 2.5A per output, non power-limited. Total output 20A max. Eight (8) selectable 12VDC - 24VDC independently controlled outputs or eight (8) independently controlled Form “C” relay outputs: a) Fail-Safe and/or Fail-Secure power outputs. b) Form “C” Relays. 28VAC or VDC @ 2.5A Rated. c) Auxiliary power outputs (unswitched). d) Any combination of the above. Any of the eight (8) fuse protected power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing. Output Fuses 3A/32V each. Total output current is determined by the power supply, not to exceed a maximum of 10A for each input. Fire Alarm Disconnect Supervised: Latching or non-latching, individually selectable for any or all of the eight (8) outputs. EOL: 10K Resistor. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Blue LED: FACP disconnect is triggered. Individual voltage LEDs: Green: 12VDC Red: 24VDC. Environmental Temperature Operating: 0° C to 50° C (32° F to 122° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr. (approx.): 177 BTU/Hr.
