Altronix MAXFIT716AP AL1024ULXB2 P/S & 2-ACM8/PD16W

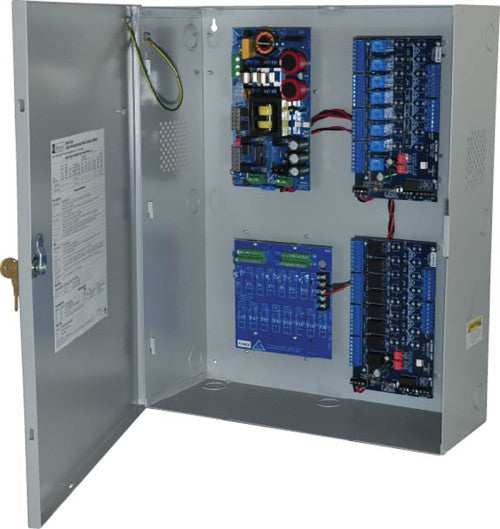

Altronix MAXFIT716AP AL1024ULXB2 P/S & 2-ACM8/PD16W Altronix MaxFit716AP Access Power Controller distributes and switches power to access control systems and accessories. It converts a 115VAC, 60Hz input into sixteen (16) distributed 24VDC fuse protected outputs and sixteen (16) independently controlled 24VDC fuse protected relay outputs. Fail-Safe/Fail-Secure power outputs may be converted to dry form “C” contacts. Relays are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Keypad, Push Button, REX PIR, etc. Unit will route power to a variety of access control hardware devices including: Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the sixteen (16) relay outputs. AL1024ULXB2 Power Supply/Charger Input Voltage: 115VAC, 60Hz, 4.2A max. Input Fuse: 5A / 250V. Outputs Voltage: 24VDC. Current: 10A @ 24VDC continuous max. Other: Overvoltage protection. Filtered and regulated. Battery Charging Type: Sealed lead acid or gel type. Fuse Rating: 15A/32VDC. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Indicators (LED) AC Input: 115VAC is present. DC Output: Powered. Battery: Discharged or not connected. PD16W Power Distribution Module Input Voltage: 24VDC from AL1024ULXB2. Outputs Voltage: 24VDC. Sixteen (16) fuse protected outputs. 3.5A per output max. Output Fuses 3.5A/250V. Indicators (LED) Green LED: DC Output. Two (2) ACM8 Dual Input Access Power Controllers Input Voltage: 24VDC from AL1024ULXB2. Main Fuse: 10A / 32V. Outputs Voltage: 24VDC. Eight (8) independently controlled fused outputs: a) Fail-Safe and/or Fail-Secure power outputs. Form “C” Relays rated 28VAC or VDC @ 2.5A. b) Auxiliary power outputs (unswitched). c) Any combination of the above. Output Fuses: 3.5A / 32VDC. Indicators (LED) Red LEDs: Outputs are triggered (relays energized). Green LED: FACP disconnect is triggered. Environmental Temperature Operating: 0° C to 50° C (32° F to 122° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity 85% +/- 5%. BTU/Hr. (approx.): 145 BTU/Hr.
