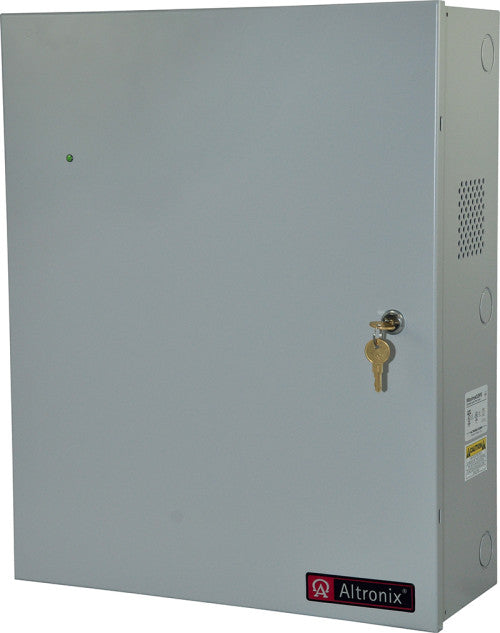

Altronix MAXFIT37FE 12/24DC6A&24DC10A P/S MAXF ENC

Altronix MAXFIT37FE 12/24DC6A&24DC10A P/S MAXF ENC Altronix MaxFit37FE Dual Power Supply Expandable Power Systems provides system designers and installers with optimum power choices and the highest levels of versatility in a more compact and economical enclosure. Unit provides 12VDC and/or 24VDC via two (2) single output power supply/charger. Includes AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries. Input Voltage: 120VAC 60Hz, 8A. Output 12VDC and/or 24VDC outputs. Maximum output current Options: A) 24VDC @ 10A plus 12VDC @ 6A. B) 24VDC @ 10A plus 24VDC @ 6A. Non power-limited outputs. Aux. power-limited output rated @ 1A (unswitched). Over Voltage Protection. Filtered and regulated. Fuse Ratings Power Supply input fuse rated: @ 5A/250V (eFlow6NB); @ 6.3A/250V (eFlow104NB). Battery Charging Capacity: 12AH / 12VDC (Up to 4 within enclosure). 40 AH / 65 AH (requires separate enclosure). Type: Sealed lead acid or gel type. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Shuts down DC output terminals if battery voltage drops below 71-73% for 12V units and 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators (LED) Input: 120VAC is present. DC Output: Powered. Temperature Operating: 0ºC to 49ºC (32ºF to 120ºF). Storage: - 20ºC to 70ºC ( - 4ºF to 158ºF). Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 24VDC: 197 BTU/Hr. 12VDC and 24VDC: 160 BTU/Hr.
