Description

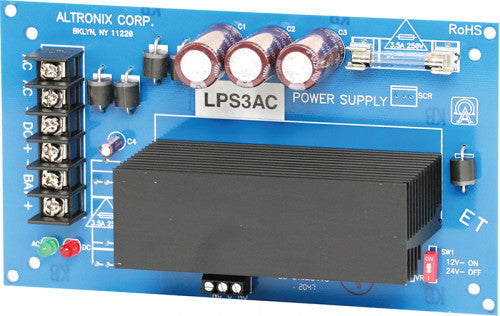

Altronix LPS3AC 12/24 2.5A W/PWR FAIL
Altronix LPS3AC linear power supply/charger converts a low voltage AC input into a 12VDC or 24VDC output. The unit is specifically designed to provide the power needed by the most demanding security and access control applications.
Input
16VAC or 28VAC.
Output
12VDC/24VDC selectable output.
2.5A continuous supply current.
Filtered and electronically regulated output.
Short circuit and thermal overload protection.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Maximum charge current: 500mA.
Automatic switch over to stand-by battery.
Fused battery protection (circuit breaker available).
Includes battery leads.
(Batteries are sold separately).
Supervision
Provides AC Fail supervision (Form "C" contacts)..
Visual Indicators
AC/DC power LED indicator.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.):
12VDC: 15 BTU/Hr.
24VDC: 31 BTU/Hr.
