Description

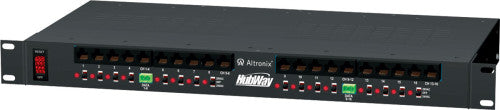

Altronix HUBWAY16DI 16CH UTP Hub 750' PTC,w/Isl Pw
HubWay16Di Passive UTP Transceiver Hub with Integral Isolated Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 16 camera channels in a space saving 1U EIA 19" rack mount chassis which may be rack, wall, or shelf mounted. Video transmission range is up to 750 ft. max. per channel. Units are compatible with AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayAv, HubWayAv2, HubWayDv or HubWayDvi Video Balun/Combiners. Unit also features individually selectable 24VAC or 28VAC PTC protected outputs with surge suppression. An optional HubSat4D Passive UTP Transceiver Hub with Integral Camera Power can be used as an accessory module to transmit video from up to 4 cameras over a single CAT-5 or higher structured cable back to the HubWay16Di. In addition, HubSat4D provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs.
Input
Voltage: 115VAC, 60Hz, 5A or 230VAC, 50Hz, 2.5A.
Outputs
PTC protected electronically isolated outputs rated 1A per channel.
Voltage: Individually selectable 24VAC or 28VAC power outputs with OFF position.
Current: Up to 1A max. per channel, not to exceed a total of 16A maximum current.
Other: Surge suppression.
Video
Sixteen (16) channels of video over twisted pair up to a distance of 228.6m (750 ft.) per channel.
Sixteen (16) 75 Ohm video outputs.
Data
RS422/RS485 data inputs.
Indicators (LED)
Outputs Sixteen (16) individual power LED indicators.
Temperature
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity 85% +/- 5%.
BTU/Hr. (approx.):
24VAC: 197 BTU/Hr.
28VAC: 229 BTU/Hr.
