Altronix EFLOW104NK8DQP 24 & 12VDC@6A/8PTC LINQ, 115V

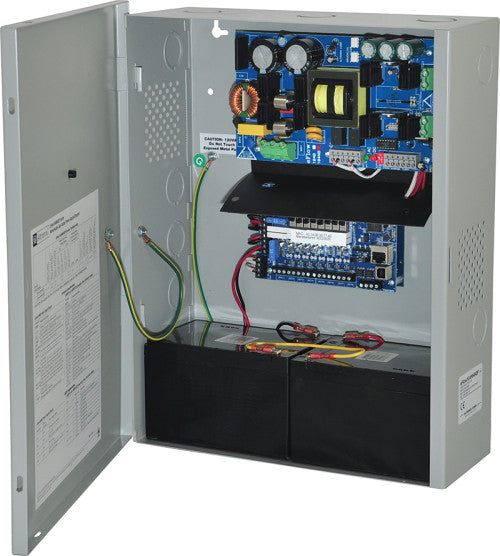

Altronix EFLOW104NK8DQP 24 & 12VDC@6A/8PTC LINQ, 115V Altronix eFlow104NK8DQP sub-assembly kit converts a 120VAC 60Hz input into eight (8) PTC protected power-limited outputs. Outputs are individually selectable, providing 12VDC or 5VDC up to 6A and/or 24VDC up to 10A (240W total power) for access control panels, door locks, and ancillary devices. Unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Networkable power distribution module facilitates monitoring, reporting, and control of the supervised DC power supply/charger over the network. It reports diagnostics via Email and Windows Dashboard Alert notifications, greatly reducing system downtime and eliminating unnecessary service calls. eFlow104NB Power Supply/Charger Input Voltage: 120VAC, 60Hz, 4.5A max. Input Fuse: 6.3A / 250V. Outputs Voltage: 24VDC @ 10A. Auxiliary: 1A (unswitched). Protection: Overvoltage protection. Filtered and regulated. Battery Charging Type: Sealed lead acid or gel type. Fuse Rating: 15A @ 32VDC. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators LED AC Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. VR6 Voltage Regulator Input Voltage: 24VDC from eFlow104NB. Output Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression. Indicators LED Input: 24VDC is present. Output: Powered. LINQ8PDCB Network Power Distribution Module Input Voltage: 24VDC from eFlow104NB and 5VDC or 12VDC from VR6. Input Fuse: 15A / 32V. Outputs Eight (8) PTC protected outputs rated 2A. Power output(s) can be locally or remotely controlled. Surge suppresion. Output PTCs: 2A. Status Monitoring Power Supply output voltage and load. Voltage and load of each output. FACP trigger and reset status. Unit temperature (Celsius). Power Supply AC and Battery status. Battery health. Indicators (LED) Bat Local: Charging current status. FACP: Triggered / Released. Input: Input signal. Out1 - Out8: Bi-colored LEDs indicate 12 or 24VDC. Reporting Windows Dashboard Alert messages. E-mail notifications. Event Log tracks history. Programming Features Power Supply(ies) voltage and load limits (High/Low). FACP trigger type (wet or dry-N.O./N.C.). Input Function (FACP reset/tamper). Output Reset Trigger (N.O./N.C.). Battery Monitor Configuration: - Battery condition (Low/Normal/Missing) - Service Date Configurable Output Relay(s). Individual Output Configuration: - Device ID - Voltage and Current Limits (High/Low) - FACP Trigger Setting (latching/non-latching/inactive) - Battery Backup. Fire Alarm Interface Supervised FACP disconnect (Latching or Non-Latching). FACP reset (N.C. or N.O.). Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 123 BTU/Hr.
