Altronix EFLOW104NK8D 24&12VDC@6A/8PTC OUT, 115VAC

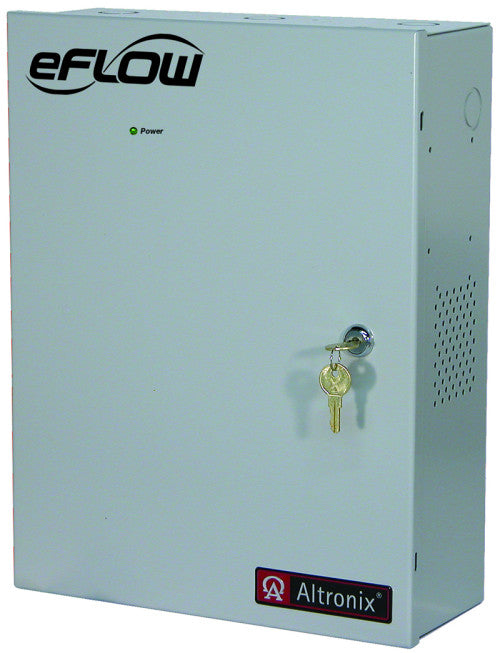

Altronix EFLOW104NK8D 24&12VDC@6A/8PTC OUT, 115VAC Altronix eFlow104NK8D sub-assembly kit converts a 120VAC 60Hz input into eight (8) PTC protected powerlimited 12VDC or 24VDC outputs with a total of 10A max. Unit includes an unswitched aux. output. It also offers a suite of features that includes fire alarm disconnect, over voltage protection, and low power disconnect which prevents deep discharge of stand-by batteries. Dual input design allows power to be steered from two (2) factory installed independent low voltage 12 or 24VDC Altronix power supplies to eight (8) independently controlled PTC protected outputs. eFlow104NB Power Supply/Charger Input Voltage: 120VAC, 60Hz, 4.5A max. Input Fuse: 6.3A / 250V. Outputs Voltage: 24VDC @ 10A. Auxiliary: 1A (unswitched). Protection: Overvoltage protection. Filtered and regulated. Battery Charging Type: Sealed lead acid or gel type. Fuse Rating: 15A @ 32VDC. Failover: Upon AC loss, instantaneous. (Batteries are sold separately). Fire Alarm Disconnect Supervised: Latching or non-latching. EOL: 10K Resistor. Supervision AC Failure: Form “C” contacts. Battery: Form “C” contacts. Low DC Power Shutdown: Shuts down DC output terminals if battery voltage drops below 70-75% for 24V units (depending on the power supply). Prevents deep battery discharge. Indicators LED AC Input: 120VAC is present. DC Output: Powered. Battery: Discharged or not connected. VR6 Voltage Regulator Input Voltage: 24VDC from eFlow104NB. Output Voltage: 12VDC. Current: 6A continuous. Other: Surge suppression. Indicators LED Input: 24VDC is present. Output: Powered. PDS8CB Dual Input Power Distribution Module Input Voltage: 24VDC from eFlow104NB and 12VDC or 5VDC from VR6. Input PTCs: 9A. Outputs Voltage: 12 or 24VDC individually selectable. Any of the eight (8) PTC protected power outputs are selectable to follow power Input 1 or Input 2. Individual outputs may be set to OFF position for servicing. Output PTCs: 2.5A. Indicators (LED) Out1 - Out8: Bi-colored LEDs indicate 12 or 24VDC. Environmental Temperature Operating: 0° C to 49° C (32° F to 120° F). Storage: - 20° C to 70° C ( - 4° F to 158° F). Relative Humidity Relative Humidity: 85% +/- 5%. BTU/Hr. (approx.): 123 BTU/Hr.
