Description

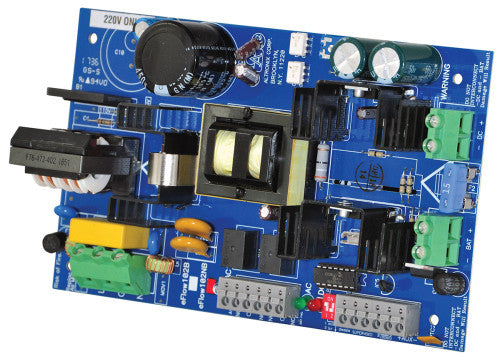

EFLOW102NBV 12VDC @ 10 amp BOARD 220V
Altronix eFlow102NBV is a power supply/charger converts a 220VAC (working range 198VAC - 256VAC), 50/60Hz input into a single 12VDC output. It also offers a suite of features that includes fire alarm disconnect, overvoltage protection, and low power disconnect which prevents deep discharge of stand-by batteries.
Input Rating
Input 220VAC (working range 198VAC - 256VAC), 50/60Hz, 2.1A.
Output
12VDC output.
10A continuous supply current.
Aux. output rated @ 1A (unswitched).
Overvoltage protection.
Filtered and electronically regulated outputs.
Battery Charging
Built-in charger for sealed lead acid or gel type batteries.
Automatic switch over to stand-by battery when AC fails.
Transfer to stand-by battery power is instantaneous with no interruption.
(Batteries are sold separately).
Fire Alarm Disconnect
Supervised Fire Alarm disconnect (latching or nonlatching) 10K EOL resistor. Operates on a normally open (NO) or normally closed (NC) trigger.
Supervision
AC fail supervision (form "C" contacts).
Notification trigger is selectable for 30 seconds (factory set) or 2 hours.
Battery fail and presence supervision (form "C" contacts).
Low power shutdown. Shuts down DC output terminals if battery voltage drops below 80% of nominal. Prevents deep battery discharge.
Electrical
Temperature:
Operating: 0° C to 49° C (32° F to 120° F).
Storage: - 20° C to 70° C ( - 4° F to 158° F).
Relative Humidity: 85% +/- 5%.
BTU/Hr. (approx.): 61 BTU/Hr.
System AC input VA requirement: 462VA.
Visual Indicators
Green AC Power LED indicates 220VAC present.
AC input and DC output LED indicators.
Additional Features
Short circuit and overload protection.
